Standard configuration

After covering the theoretical foundations of networking and understanding how IP addresses, masks, routing, and translation work together, it's time to move on to practical configuration. On GNU/Linux, network setup is now handled with the ip command (iproute2 package), which replaces the older ifconfig.
ip lets you assign or change an IP address, change a mask, start or stop an interface, or check its status at any time.
TIPS: to display all interfaces (active or not): ip addr show
Example: assigning a static address and activating Interface
Add address 192.168.1.2/24 to Interface eth0:
ip addr add 192.168.1.2/24 dev eth0
Activate Interface:
ip link set dev eth0 up
Deactivate the same Interface:
ip link set dev eth0 down
Display the status of a specific Interface:
ip addr show dev eth2
Practical tip: with ip, adding an additional address to an interface no longer requires a :1 suffix. Just add another ip addr add ... line:
ip addr add 172.18.2.39/24 dev eth2

Activation scripts: ifup / ifdown

The ifup and ifdown utilities read static configuration files from /etc/sysconfig/network-scripts/ (on RHEL, CentOS, Rocky Linux, AlmaLinux...) or /etc/network/interfaces (on Debian/Ubuntu) to cleanly bring interfaces up or down.
ifup eth1
ifdown eth2
Configuration files (RHEL-like):
  • /etc/sysconfig/network: global settings (NETWORKING, HOSTNAME, GATEWAY...).
  • ifcfg-: settings specific to each interface.
Static example (ifcfg-eth0):
DEVICE=eth0
BOOTPROTO=none
ONBOOT=yes
IPADDR=192.168.2.5
NETMASK=255.255.255.0
GATEWAY=192.168.2.1
DHCP example:
DEVICE=eth0
BOOTPROTO=dhcp
ONBOOT=yes
This modular structure is still valid and can be easily automated on current systems.

Advanced configuration: bonding

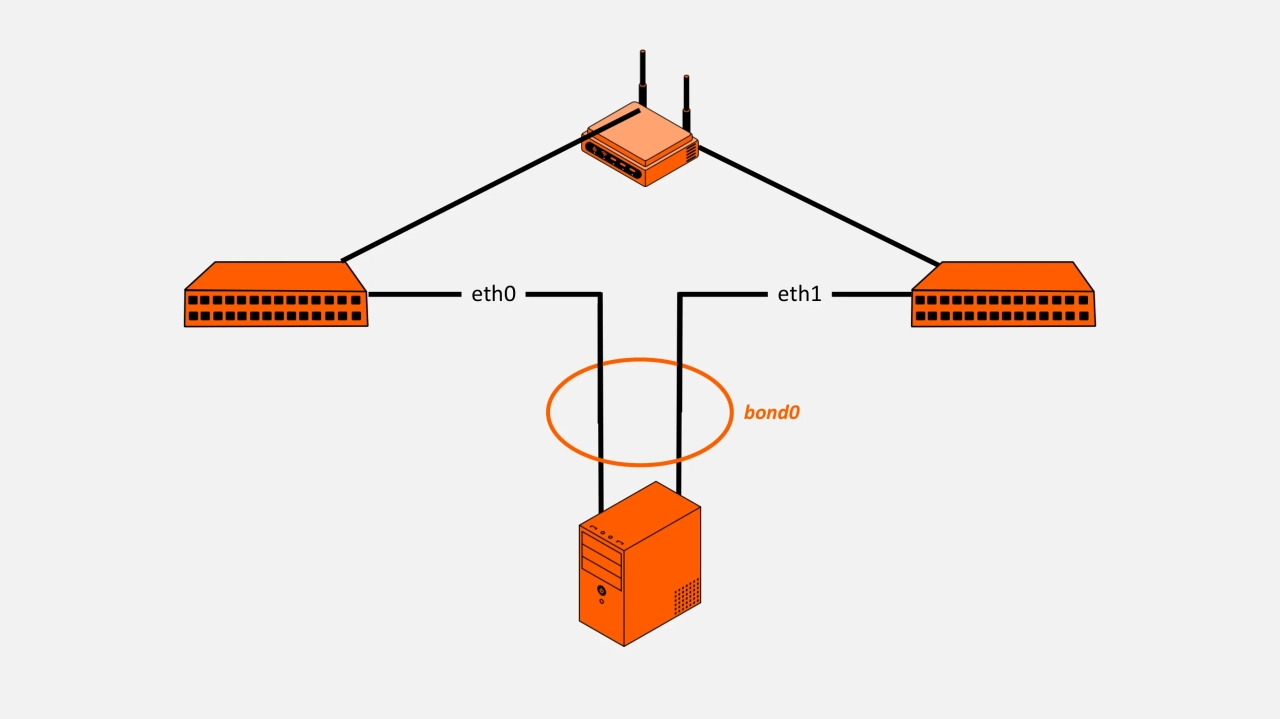

In professional environments, the aim is to guarantee service continuity and/or to aggregate bandwidth. Bonding (or teaming with teamd) mechanisms meet these needs: several physical interfaces function as a single logical Interface, often called bond0 or team0.
Prerequisites:
  • Load the bonding module (or use teamd) ;
  • Have at least two physical interfaces available.

The various common bonding methods:

ModeNamePrinciple
0balance-rrRound-robin, cyclic distribution of frames
1active-backupSingle active interface with hot failover
2balance-xorSelection based on XOR of src/dst MAC addresses
3broadcastBroadcast simultaneously on all interfaces
4802.3ad (LACP)Standardized dynamic aggregation; requires compatible switch
5tlb (Transmit Load Balancing)Balancing based on transmit load
6alb (Adaptive Load Balancing)Adaptive balancing; also balances receive via ARP

Setting up with `ip link

  • Disable physical interfaces:
ip link set eth0 down
ip link set eth1 down
  • Creat the bonded Interface:
ip link add bond0 type bond mode balance-alb
  • Configure options after creation
ip link set bond0 type bond miimon 100
  • Assign MAC and IP addresses:
ip link set dev bond0 address 00:17:56:BC:02:3A
ip addr add 192.168.2.3/24 dev bond0
ip route add default via 192.168.2.1
  • Attach slave interfaces:
ip link set eth0 master bond0
ip link set eth1 master bond0
  • Bring everything back up:
ip link set bond0 up
ip link set eth0 up
ip link set eth1 up
Tip: to detach a slave without taking down the bond: ip link set eth1 nomaster

Permanent configuration (RHEL-like)

Create three files in /etc/sysconfig/network-scripts:
ifcfg-bond0
DEVICE=bond0
ONBOOT=yes
BOOTPROTO=none
IPADDR=192.168.2.3
NETMASK=255.255.255.0
BROADCAST=192.168.2.255
GATEWAY=192.168.2.1
BONDING_OPTS="mode=balance-alb miimon=100"
ifcfg-eth0
DEVICE=eth0
ONBOOT=yes
MASTER=bond0
SLAVE=yes
ifcfg-eth1
DEVICE=eth1
ONBOOT=yes
MASTER=bond0
SLAVE=yes
Then:
systemctl restart network

Additional IP address (modern alias)

With ip, you can simply add a second address to the same device:
ip addr add 192.168.1.2/24 dev eth0
To make this alias persistent after a reboot, either add a second IPADDR2=... / PREFIX2=... block to ifcfg-eth0, or create a new NetworkManager connection via nmcli.
Thanks to ip and related commands (ip link, ip addr, ip route), network configuration is more consistent, scriptable and clear. Bonding is a key component of high-availability architectures, and assigning multiple addresses to a single interface has become much simpler.
In the next chapter, we’ll look at the specifics and implementation of IPv6 addressing.
