GrapheneOS is a nonprofit open-source mobile operating system designed to provide a high level of privacy and security while remaining fully compatible with Android applications.

GrapheneOS, originally founded in 2014 as 'CopperheadOS' is based on the traditional Android Code (AOSP), but with many changes and improvements aimed at improving user privacy and security. GrapheneOS puts the user in control of their phone, not the big tech companies.

Sommaire:

Intro
Preparation
Install
App Alternatives
Downsides
Useful Info

This tutorial is an adaptation of the original content published by BitcoinQnA on Bitcoiner.Guide under MIT license, to whom full credit goes for the initial writing.

Why use GrapheneOS?

Modern phones are $500-$1000 tracking and data harvesting devices. Every single facet of our life runs through them, and unfortunately much of this data is shared with third parties in some form or another. GrapheneOS is built specifically to reduce this data sharing and improve your device security from potential attack vectors. There's no such thing as a GrapheneOS account. You don't need one to download apps or interact with the OS. Simply put, you are not the product.

GrapheneOS provides additional security to your Android experience through some simple core principles.

Attack surface reduction - Remove unnecessary code (or bloatware).
Vulnerability exposure prevention - Allow the user enough granularity to choose the compromises they're comfortable with.
Sandbox containment - GrapheneOS fortifies existing Android sandboxes, further locking down each app's ability to communicate with the rest of your phone.

Learn more about the technical details of the GrapheneOS feature set here.

Easing the Transition

If you've been entrenched within the Google or Apple ecosystem for years, the thought of losing all that convenience overnight can be a scary one. But with some carefully considered app install decisions (covered later), much of this expected difficulty can be reduced or removed.

As good as the alternatives are becoming, the thought of such a change can still be off-putting. If you find yourself in this situation, my best advice is to run your new GrapheneOS device alongside your existing phone for a while. From there you can slowly wean yourself off 2-3 apps per week until you find yourself only reaching for your GrapheneOS device.

If you take this approach, be strict with yourself and cut off your reliance on the surveilled alternatives as quickly as possible. Us humans are lazy and will often take the path of least resistance. Remember why you made the switch in the first place.

Instead of paying with your personal data, you chose to pay with your time, and sometimes your hard earned money (depending on the alternative apps you install).

Getting Started

GrapheneOS is currently only in production for (rather ironically) the Google Pixel range of phones. This does not come without good reason though. Pixel's offer the best hardware-based security to complement the work done to harden the OS. This includes things like specific component isolations and verified boot.

Choosing a device

When choosing the Pixel you want to install GrapheneOS on, ensure you check how long the device will continue getting default security updates for.

At the time of writing, the Pixel 6a is the cheapest model available with good long term support, guaranteed until July 2027. If you do choose this model, OEM unlocking won't work with the version of the stock OS from the factory. You need to update it to the June 2022 release or later via an over-the-air update. After you've updated it you'll also need to factory reset the device to fix OEM unlocking. All other models that are carrier unlocked will be ready for GrapheneOS straight out of the box.

When choosing a device you'll also want to ensure you purchase an unlocked version. Certain carriers like Verizon ship their units that are bootloader locked which completely prevents the following process.

Installing GrapheneOS

The GrapheneOS web installer makes the entire process a breeze, and one that can be completed by anyone in under 10 minutes. The following instructions are a cut down version taken from the link above.

All you need to hand is:

The Pixel
A USB cable to go from the phone to your computer
A computer to run a web browser (any Chromium-based browser: Chrome, Edge, Brave, etc.)

Let's dive into it:

The first step is to go to Settings > About phone and repeatedly tap the build number until you see 'Developer Mode' is activated.
Next head to Settings > System > Developer Options and enable 'OEM Unlocking'.
Now reboot the device and hold the volume down button whilst the phone is turning back on.
Connect the phone to your laptop and if prompted for authorization, allow the connection.
On the web installer page, click on 'Unlock the bootloader'.
You'll then see the phone options change. Use the volume button to change the selection to unlock and use the power button to accept.
Next click download release on the web installer page.
Once fully downloaded, move on to the next step and click 'Flash release'. This will take a minute or two and you do not need to touch the phone at all.
Finally, move to the next step of the web installer and click Lock Bootloader. You'll need to change the selection and confirm with the power button in the same way you did earlier in the process.
When you see the word Start, confirm this with the power button and the device will boot into your new Google-free operating system.

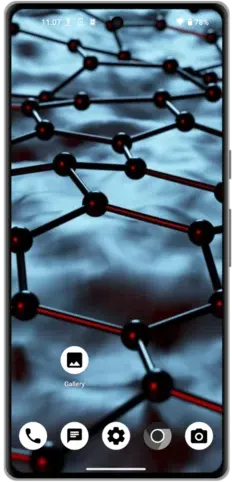

GrapheneOS start screen

After initial boot and setup, it is good practice to disable OEM unlocking from Settings > System > Developer Options.

You may also want to take the extra, optional but recommended step of verifying the install via the Auditor app. You'll need a separate Android phone with the app installed to complete this step. Instructions for this can be found here.

Video detailing the simple steps outlined above

If those simple steps seem like a step too far, you could consider purchasing a Pixel with the GrapheneOS software pre-installed (there are companies that sell them). Just be aware that you're putting a small amount of trust into the provider.

Pre Installed Apps

Now that you're set up, you might notice how bare bones GrapheneOS appears upon first installation. By default you'll have these apps installed:

Default apps

The only two you may not be familiar with are 'Auditor' and 'Vanadium'.

The Auditor app uses hardware-based security features to validate the identity of a device along with authenticity and integrity of the operating system. It will verify that the device is running the stock operating system with the bootloader locked and that no tampering with the operating system has occurred.
Vanadium is a privacy and security hardened variant of Chromium web browser.

Customization

Phone settings are a personal thing, but here are some of the first items I change when installing GrapheneOS to make myself feel more at home.

Setting a wallpaper and updating the theme

Head to Settings > Wallpaper and Style. From here:

Update the home and lock screen backgrounds for images downloaded from the web.
Choosing the accent colors used throughout the UI.
Enable Dark theme.

Show battery percentage

Head to Settings > Battery, then enable Show battery percentage in the status bar.

Import contacts

From another Android phone - Head to Contacts app and look for the Export to VCF option.

From iOS - Use an app like Export Contact and use the 'vCard' export option to export a VCF file. Once you have the VCF file, you can transfer across to your GrapheneOS device with an external storage option like microSD card or USB drive. If you don't have any of those to hand, you could opt to share via one of the many apps listed below.

Personalized home screen

Alternative Apps

To make your phone useful you're going to want to install some applications! The options that follow are included because I have used them all personally or because they receive strong recommendations from the wider privacy community. There are many other great alternatives available that aren't mentioned, and Awesome Privacy offers an incredibly extensive list of privacy preserving applications for all types of device.

Just because an app is Free and Open Source Software (FOSS) does not mean it is free from potential privacy leaks. Use Exodus to see how your preferred apps perform against their privacy audits.

F-Droid

F-Droid is an installable catalogue of FOSS applications for Android. The client makes it easy to browse, install and update applications on your device. It's worth mentioning that updates via F-Droid can sometimes be slower than with other app stores. This is mainly dependent on whether or not the app is found via the main F-Droid repository or a custom one.

To install F-Droid simply head to their website via a browser on your GrapheneOS phone and tap download. This will download an .apk file. You'll then be asked if you'd like to install the app.

As well as applications found within the default repository in F-Droid, many Open Source projects will also host their own repository that can be added in the F-Droid app settings. If this is the case, the project in question will walk you through the very simple steps required to achieve this on their website.

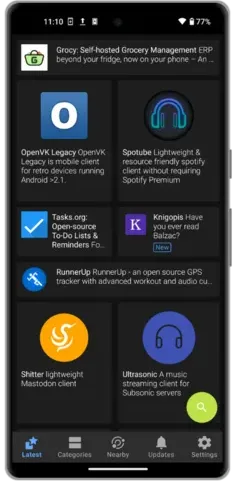

F-Droid home screen

F-DroidThe catalog of free and open-source applications.

Aurora Store

Aurora Store is a FOSS version of the Google Play store. Aurora looks and feels very similar to the traditional Play Store and allows you to download and update any app you'd normally find via the Google option.

The killer feature of Aurora is anonymous log in. This means you can download any of your favorite apps that aren't available via F-Droid or direct APK, without having to be logged into your Google account.

Before you rush to make this your default install option, remember that many of the applications we're trying to get away from were installed from the Play Store. Just because they're accessible from Aurora doesn't change the fact that some may have tracking features embedded. It won't always be possible, but whenever you can, look for an F-Droid alternative before downloading via Aurora.

To install Aurora, simply search 'Aurora Store' in F-Droid.

Aurora does also have some potential attack vectors, as the "anonymous accounts" are really created and controlled by Aurora. They could, in theory, serve malicious updates or push apps to your phone, though you'd still have to accept the install prompt on device. Aurora also sometimes has some issues with apps not showing up due to region and device misreadings. This can usually be worked around with the steps below.

Top tip - Sometimes the Aurora Store will experience rate limiting which limits your ability to search and install apps. To get around this go to Settings > Apps > Aurora > Open by default, then add the domain play.google.com. Now, whenever navigate to a product or service's website that has the 'Download via Play Store' link, tapping on it will open that app within Aurora for you to download.

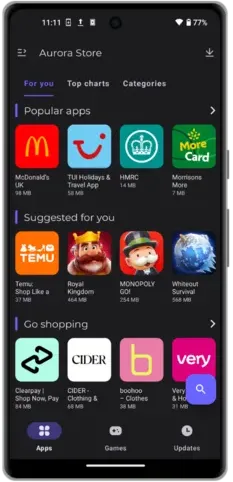

Aurora Store home screen

Aurora StoreA free alternative to the Play Store for downloading Android applications

APK Download

Apps on Android can also be downloaded and installed via an .apk file. This is a great alternative that requires zero third party app stores, simply download the file directly from the project or services' website or GitHub repository.

The downside to this approach is that you don't get automatic updates, so you'll need to monitor that service's communication channels to learn about new releases. However there is a a great project called Obtanium that aims to fix this. Obtainium allows you to install and update Open-Source apps directly from their releases pages, and receive notifications when new releases are made available.

Obtanium preview

Web Apps

For times where you might want to infrequently use a service and do not want to download a native application, you can simple access the web version. Many websites nowadays also offer Progressive Web App (PWA) support. This is where you can bookmark a specific website (eg Twitter.com) to your phone's home screen. Then when you tap on the icon it opens as a full screen application without the usual distractions that come with the typical browser experience. You can see an example of how this looks below.

To achieve this in Vanadium, GrapheneOS' native browser, simply navigate to the website of choice, tap the three vertical dots in the top right corner of the screen and then tap 'Add to Home Screen'.

The only downside of this approach is that because this is just a bookmarked web page, you won't get any form of notifications. Though some might see that as a positive!

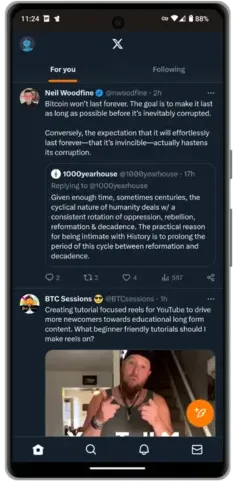

Twitter PWA

Web Browsers

You can't really go wrong with the pre-packaged option, Vanadium. The app behaves identically to any other mobile browser I've tried and I've not once had any compatibility issues.

For times when you need to access Tor native .onion sites, you can download the Tor Browser APK directly from their website or via F-Droid.

VPNs

To protect your online activity from your snooping internet service provider (ISP), a Virtual Private Network (VPN) app is a good option. A VPN sends your internet traffic in an encrypted tunnel to a shared IP address controlled by the VPN service provider to ensure your device activity cannot be linked to you.

Here are two recognized options that allow you to pay for the service in Bitcoin without providing any personal information. Both are available on F-Droid.

IVPNSetting up a VPN paid for with bitcoins

Mullvad VPNSetting up a VPN paid for with bitcoins

Messaging

In recent years encrypted messaging solutions have become plentiful. The problem remains though, you can have the best and most private option installed on your phone, but if you have no contacts that use it, what's the point?

Most people who have no interest in the privacy space are likely to be using WhatsApp or iMessage. The former can be downloaded via the Aurora Store but the latter is not going to work on GrapheneOS (obviously!).

Signal is one of the more popular end-to-end encrypted (E2EE) messengers that has a strong track record and rich feature set. Signal requires a phone number for sign up, so if you plan on chatting with people that you'd rather did not know your phone number, perhaps look into some of the alternatives or hide your number in your profile settings. Signal must be downloaded via the Aurora Store.
Simplex is a fairly new E2EE messenger. It has no user ID, requires no phone number or personal information. People find you by scanning your personal QR code or by visitng your unique link. Simplex also allows advanced users to run their own server to further reduce reliance on any centralized entity. Simplex does not have a desktop client, so may not be suitable if multi-device is on your priority list. Simplex for Android is available via F-Droid.
Threema offers a similar experience to Simplex, but has been around for longer and as a result, feels a little more polished. Threema is not free, a lifetime license costs $4.99 and can be bought with Bitcoin. Threema offers a web client and native desktop applications. The Android application is available via F-Droid.
Mercurygram is an unofficial FOSS fork of the official Telegram app for Android. Telegram has E2EE 'secret chats', but the default option is not private. Mercurygram can be downloaded from F-Droid.

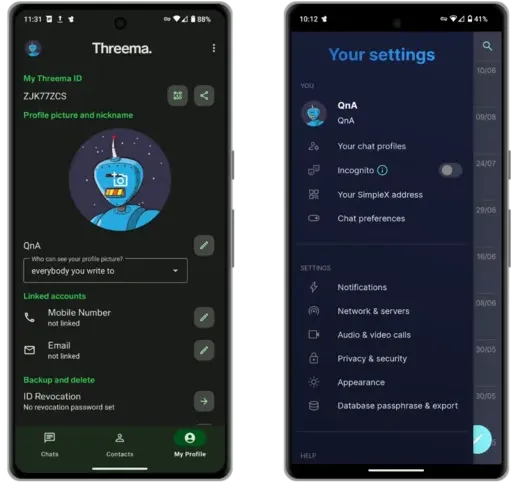

Left: Threema, Right: Simplex

SignalExpress yourself freely

TelegramMessages and much more, on mobile and desktop

ToxOpen up conversations without intermediaries on the decentralized Tox protocol

SimpleX ChatThe first mailbox without a user ID

ThreemaSecure, anonymous instant messaging

Media

Spotube is a cross-platform Spotify client that doesn't require a Premium account. Spotube is available via F-Droid.
Newpipe offers a YouTube experience without the annoying adverts and questionable permissions. With NewPipe you can subscribe to channels, listen in the background and even download for offline viewing. NewPipe is accessible via F-Droid.
AntennaPod is a podcast player that allows you to subscribe and manage all of your favorite shows. AntennaPod is available via F-Droid.

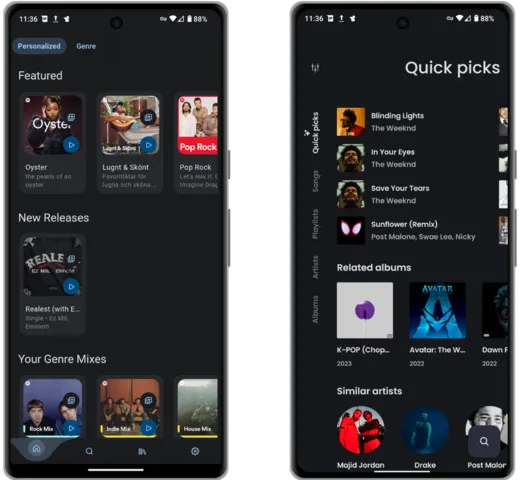

Spotube

Maps

If you want voice assistance whilst driving and using a maps app in GrapheneOS, you'll need to install RHVoice and configure it.

Magic Earth is a maps alternative that supports turn-by-turn navigation, 3D and offline maps. Magic Earth can be downloaded from the Aurora Store.
Organic Maps is maps alternative for travelers, tourists, hikers, and cyclists based on top of crowd-sourced OpenStreetMap data. It is a privacy-focused, open-source fork of Maps.me app (previously known as MapsWithMe). It supports 100% of features without an active Internet connection and can be downloaded from F-Droid.
OsmAnd is another great maps alternative that supports all of the features mentioned above.

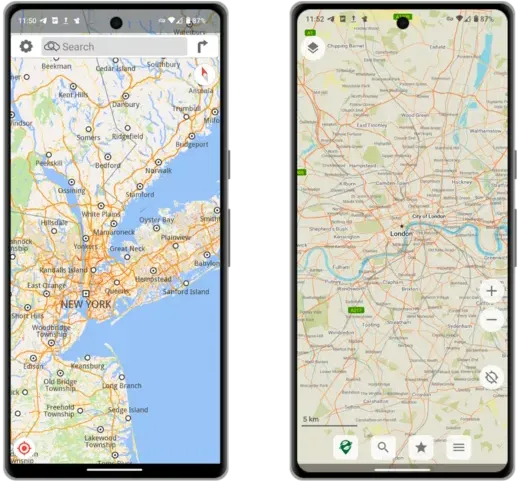

Left: Magic Earth, Right: Organic Maps

Email

Proton Mail offers a free private email service that supports audited E2EE. Proton also offers a paid version that supports custom domains and aliasing. Proton Mail can be downloaded as a direct APK or via Aurora.
Tutanota offers the same features as Proton Mail, including optional paid services and can be downloaded as a direct APK or via F-Droid.
K-9 Mail is an open source email client that works with basically every email provider. It supports multiple accounts, a unified inbox and the OpenPGP encryption standard.

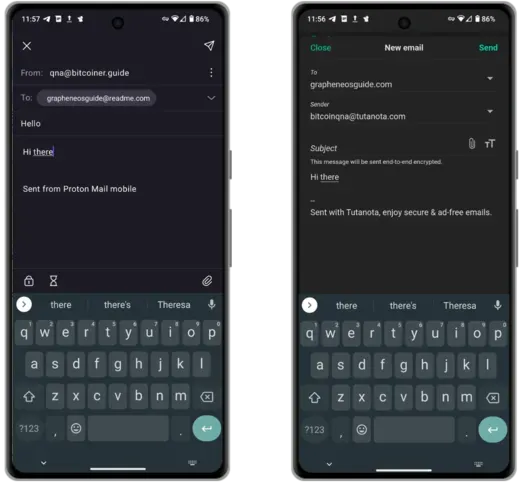

Left: Proton Mail, Right: Tutanota

Productivity

Syncthing Fork is a fork of the file synchronization program. It synchronizes files between two or more devices in real time, safely protected from prying eyes. Your data is your data alone and you deserve to choose where it is stored, whether it is shared with some third party, and how it's transmitted over the internet. Syncthing Fork is available via F-Droid.
KDE Connect all of your devices to easily talk to one another when connected to your home network. Easily send files, photos, clipboard data across all of your devices (even on iOS!). KDE connect can be downloaded from F-Droid.
Notesnook is an E2EE notes application for syncing your thoughts and to-do lists across all of your devices. Their free plan should cover most personal use cases. Notesnook is available on F-Droid.
Standard Notes is very similar to Notesnook, but requires a paid plan to match the feature set. Standard Notes is available through F-Droid.
Anysoft Keyboard is a keyboard app that allows you to customize pretty much anything you can think of when it comes to your phone typing experience. It can be downloaded via F-Droid.
GBoard is the default Google keyboard app. In my experience it offers by far the best type and swipe experience. If you download this app, ensure you completely disable all network related permissions. It can be downloaded via Aurora.

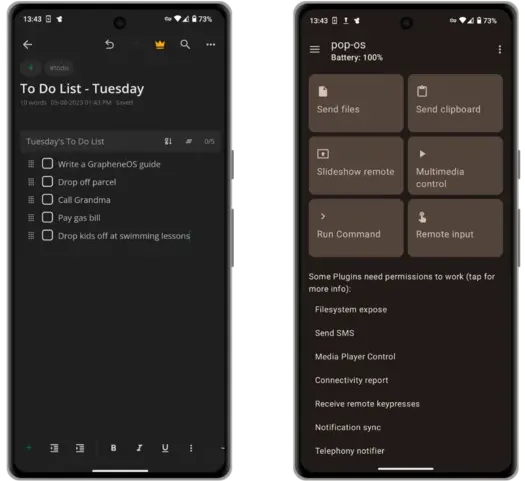

Left: Notesnook, Right: KDE Connect

Lifestyle

Breezy Weather is a feature-rich open source weather app with Material 3 Expressive interface; it offers well-thought-out visualizations, forecasts, real-time conditions, air quality, pollen, weather alerts from over 50 sources.
Translate You is an Open Source and privacy preserving translation app that supports more than 200 languages. Translate You is available via F-Droid.
Proton Calendar is a simple to use E2EE that interacts seamlessly with your Proton email accounts. Proton Calendar can be downloaded as an APK or via the Aurora store.
PassAndroid is an app for displaying and storing boarding passes, coupons, movie tickets and membership cards etc. Simply download the relevant pkpass or espass file and open with the app. PassAndroid is available via F-Droid.

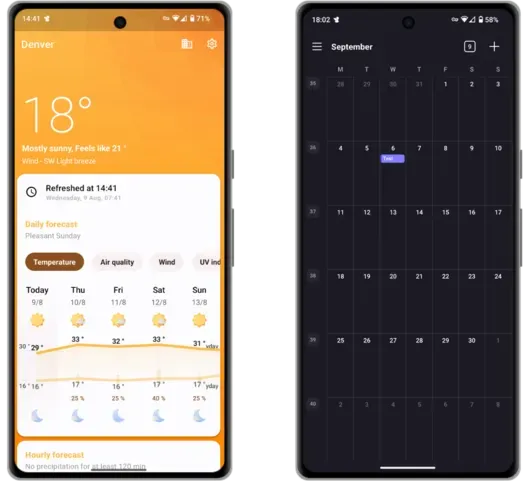

Left: Breezy Weather, Right: Proton Calendar

Security/Privacy

Bitwarden offers a free and E2EE cross platform password manager solution for all of your devices. Their paid service allows you to integrate 2FA codes into the app. The server side of Bitwarden can be self hosted and the Android app is available via F-Droid.
Proton Pass offers a similar free service to Bitwarden, but Proton Unlimited customers are able to access additional advanced features. Proton Pass is available via APK or Aurora.
FreeOTP is a two-factor authentication application for systems utilizing one-time password protocols. Tokens can be added easily by scanning a QR code. FreeOTP is available via F-Droid.
Aegis is a free, secure and Open Source app for Android to manage your 2-step verification tokens for your online services. Aegis is available via F-Droid.
Cryptomator is a free cross-platform service (paid only via Google Play on Android) that encrypts your data locally so you can safely upload it to your favourite cloud service. Cryptomator can be downloaded via F-Droid.

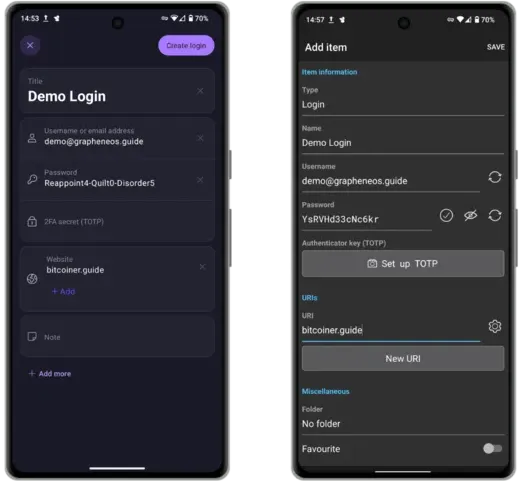

Left: Proton Pass, Right: Bitwarden

Ente AuthAn open-source, end-to-end encrypted 2FA authenticator

BitwardenHow to set up a password manager?

Aegis AuthenticatorHow can you use Aegis Authenticator to secure your accounts with dual authentication?

CryptomatorEncrypt your files in the cloud

Cloud Solutions

Proton Drive is a paid E2EE cloud solution for backing up and storing all of your files. At the time of writing, they have just announced a Windows desktop client, but Mac and Linux users must continue to use the web version to sync from their computers (for now). The Android client is available as an APK or via Aurora.
Skiff also offers paid E2EE cloud storage and file collaboration tools. They offer a Mac and Windows desktop client (as well as a web app) and their Android clients must be downloaded from Aurora.
Nextcloud offers a fully featured cloud based solution for collaboration, cross device sync and file storage. More advanced users can choose to self-host their Free and Open Source software on any hardware they like. The Android clients can be downloaded via F-Droid.
Cryptpad offers a free, web based, E2EE alternative to Google Docs.

Proton Drive

Proton DriveImplementing Backup

The Downsides

The Open Source and privacy preserving alternatives to the tech conglomerate applications you've gotten used to using are plentiful, and some of them are often better than the closed source, spyware ridden alternatives.

However when moving to GrapheneOS, there are some creature comforts that you must give up due to no alternatives. These include:

Apple CarPlay/Android Auto - You're going to need to stick to good old fashioned Bluetooth, USB or Aux.
Apple/Google Pay - Pretty much everyone carries their wallet with them anyway!
Banking apps - It's not that these don't work at all. Some do, perfectly in fact. Others work only with Google Play Services enabled (read more on that below) and others just don't work at all. Read the report on your bank here to see the current state of play. Fear not if yours is on the list that does not work, remember you can just save the URL as a web app on your home screen.
Push Notifications - Most applications that send you updates when not using a specific app will do so through Google Play Services. These are not installed by default with GrapheneOS, so if you find yourself not being notified immediately when your friend sends you an email, this is likely why. The good news is that some of the apps mentioned above have implemented their own background connection to periodically check for updates and then give you a notification where required

Sandboxed Google Play

Please note that: GrapheneOS has a compatibility layer providing the option to install and use the official releases of Google Play in the standard app sandbox. Google Play receives absolutely no special access or privileges on GrapheneOS as opposed to bypassing the app sandbox and receiving a massive amount of highly privileged access.

If you find you simply cannot live without those push notifications for your favorite app or a certain 'must have' app is useless without Play Services, GrapheneOS allows you to install these services in a completely sandboxed environment. Once installed, these services require no Google account to work, and each one's permissions can be tightly controlled.

Before you rush to install these on day 1, I urge you to see how far you get without them. You'll probably be surprised at just how many apps function perfectly normally without.

If you do want to install them, simply tap the pre-installed 'Apps' application followed by 'Google Play Services'. Consider installing them alongside those less private apps you can't live without, inside a completely separate user profile to provide that extra layer of segregation from the rest of your phone.

Play Services install screen

Profiles

GrapheneOS allows you to have a separate phone experience, within your phone. Additional profiles can install their own apps and services and cannot access any files or data from the owner account. If you only have one or two of those must have apps that require Play Services, but are only used very infrequently, installing those alongside Play Services in a separate profile might be a great idea to further bolster any minute privacy implications that are left by having them running in the owner profile.

You can read more about this use case here.

If you decide to add a separate profile to suit your use case, the app Insular might be useful to you. Insular allows you to easily clone any of your existing apps across to the new profile without the need to go via any of the traditional install routes covered earlier in this guide. Insular also allows you to quickly 'freeze' any of those apps to completely disable all of that app's background services from running.

User profile management screen

e-Sims

If you want to take your phone privacy to the next level and have a cell service that is detached from your real world identity, an eSIM might be for you. An eSIM is a virtual SIM that you can purchase online and add to your phone via a QR code. Companies offering such services that can be paid for anonymously with Bitcoin include Silent.Link and Bitrefill.

eSIMs should not be looked at as a complete panacea for phone privacy. They can be a useful tool when in the right hands, but please do your research on the tradeoffs of using any type of cell service if you intentions is to go completely 'off grid'.

Sandboxed Play Services must be installed for eSIM provisioning in GrapheneOS.

Backups

After getting your new de-Google'd Pixel phone setup, it's a good idea to create yourself a backup. This backup will enable you to restore the phone to an identical state in the event that you lose your phone or it gets lost/stolen.

You can elect to store the backup file onto any external storage media, or to a self-hosted cloud solution like Nextcloud, although some users report varying levels of success with the latter option.

To create your first backup:

Go to Settings > System > Backup, then write down your 12-word recovery code. This code is required to decrypt the backup file at a later date. Lose the code, lose access to your phone backup.
Next choose your storage location. I'd recommend an external USB drive or industrial grade microSD card.
Choose the data to be backed up. If you have the space on your specified storage medium, I'd advise selecting everything.
Tap the three dots n the top right, and choose Backup now.

Backup screen

Remember that if you're making offline backups to external storage media, it makes sense to complete this step regularly to ensure any recent important updates to your phone are not lost if the worst were to happen.

Video detailing the backup process

Conclusion

In recent years the GrapheneOS software has matured significantly. It is more stable and compatible than ever. Coupling this with the flourishing Open Source and privacy preserving app ecosystem, makes GrapheneOS a truly viable alternative to stock Android or iOS, even for 'normal' people just like you!

Data breaches and dragnet surveillance are so commonplace in today's world that they barely make headlines anymore. It's up to you to protect yourself. There will be adjustments and sacrifices to be made along the way, but reducing your exposure to such infringements is nowhere near as difficult as you think it will be.

I hope this guide goes some way to helping you along your journey. If you found this guide useful and would like to support my work, please consider sending a donation.

If you are an existing GrapheneOS user, or become one as a result of this guide, consider donating to support their important work.

Learn more

GrapheneOS is a rabbit hole anyone could easily spend weeks going down. There's just so much you can learn and tinker with to tailor the experience to your requirements and threat models. Below are some links where you can continue your journey:

GrapheneOS Official Usage Guide - Official Website
GrapheneOS Forum - Official Website
GrapheneOS Settings Masterclass - Video by 'The Privacy Wayfinder'
GrapheneOS General Podcast - Podcast by 'Watchman Privacy'

This tutorial is an adaptation of the original content published by BitcoinQnA on Bitcoiner.Guide under MIT license, to whom full credit goes for the initial writing.

Did this work well for you?

Original source:https://bitcoiner.guide/grapheneos/

Author

This tutorial has been written by Bitcoin Q&A

You can say thanks by tipping the professor.

Bitcoin Q&A

3Tutorials

My name is QnA. I am a Bitcoiner and I like to help other Bitcoiners. I spend my days building Bitcoin-centric sovereignty tools at Foundation. This site is a collection of my contributions that I can point people towards to help them along their journey. If you find it valuable, please share it with your peers and consider contributing or sending a tip.

guidesself-sovereigntyuser-friendly

Credits

This tutorial has not been proofread yet

0/3Proofreading status

The original content has been translated by AI, but human review is necessary to ensure its accuracy.

7 525 sats3 763 sats1 882 sats

*Rewards may vary based on the $ exchange rate

Every content on the platform is the result of a collaborative effort: each lesson, translation, and revision is made possible by the work of contributors. For this reason, we are always looking for proofreaders who can review our content in many languages. If you want to participate in the proofreading process, please reach out in our Telegram group and read our tutorial. We remind you that this content is open-source - licensed under CC BY-SA - so it can be freely shared and used, as long as the original source is credited.
