ThunderHub

Introduction

• Monitoring: Global view of balances, channels, transactions, routing statistics
• Management: Open/close channels, incoming/outgoing payments, channel balancing
• Integrations: LNURL support, swaps via Boltz, Amboss backup
• Interface responsive: Compatible with mobile, tablet and desktop devices with dark/light themes

Umbrel LNDAdvanced tutorial on installing and configuring Lightning Network Daemon (LND) on Umbrel

Installation

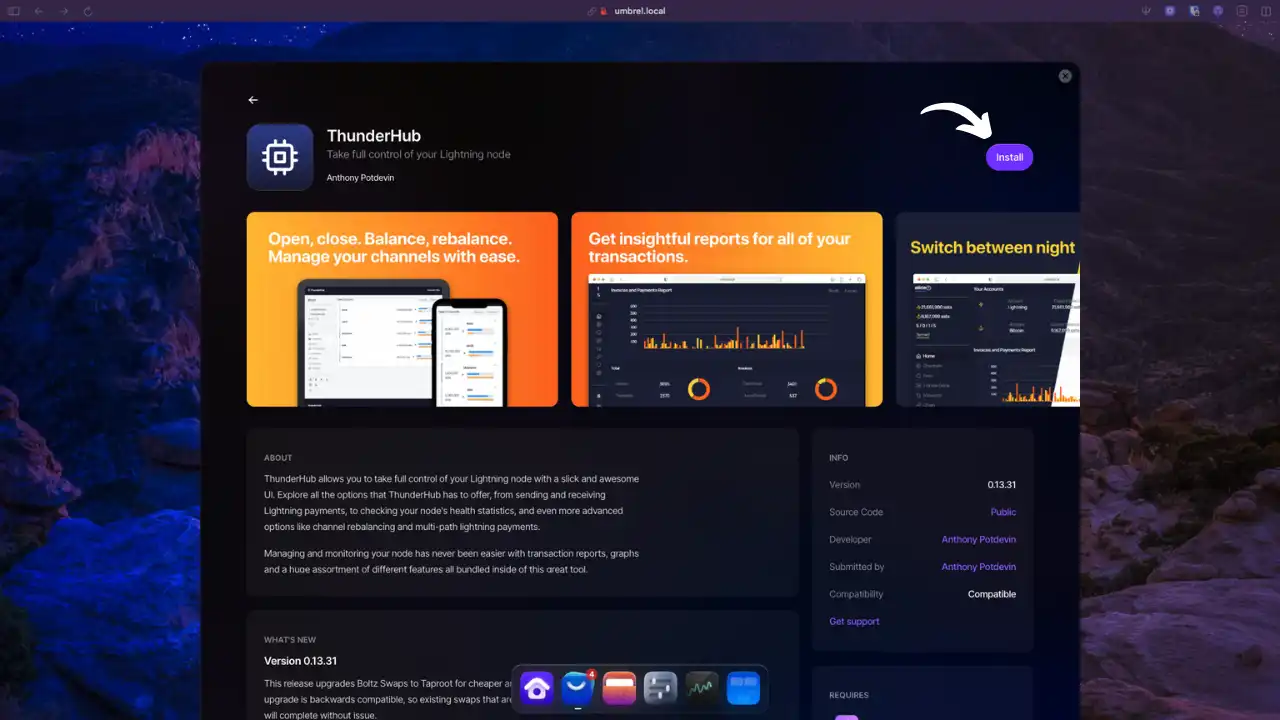

Installation via Umbrel

• Open the Umbrel dashboard: Connect to the Interface web of your Umbrel node (e.g. http://umbrel.local on your local network, or via its .onion address if you're using Tor).
• Access the App Store: In Umbrel's main menu, click on "App Store" (or "App"). Search for ThunderHub in the list of available applications.

• Install ThunderHub: Click on the ThunderHub application, then on the install button. Confirm if necessary. Umbrel will automatically download and deploy ThunderHub on your node.

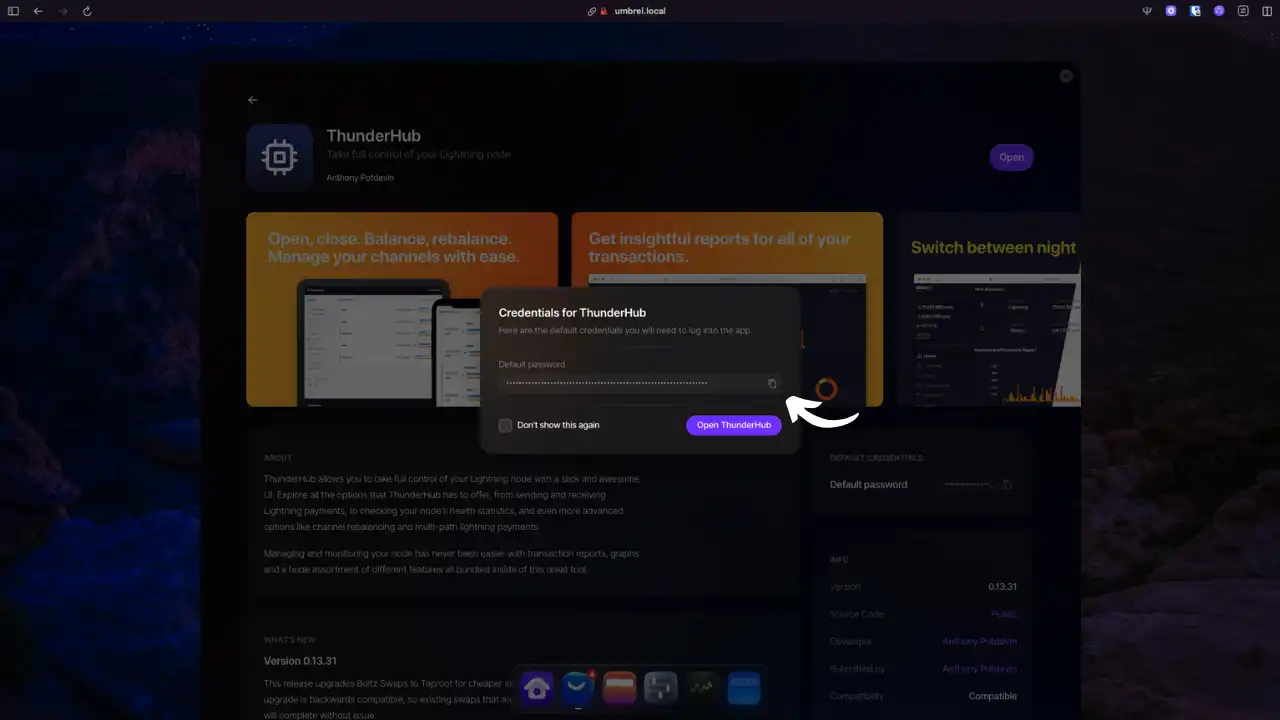

• Launch the application: Once installation is complete (a few tens of seconds), ThunderHub appears on your home page. Click on the icon to open it. ThunderHub launches in your browser.

• Save this password immediately in your password manager
• Copy it for use in the next step
• Check "Don't show this again" once the password has been saved

Manual installation (self-hosted, excluding Umbrel)

Installation

• Node.js version 18 or higher
• npm installed
• Access to LND authentication files :
  • LND TLS certificate (tls.cert)
  • LND administration macaroon (admin.macaroon)
  • LND gRPC service address (hostname:port) (default 127.0.0.1:10009 locally)

git clone https://github.com/apotdevin/thunderhub.git
cd thunderhub

npm install
npm run build

# Méthode rapide
npm run update

# Ou méthode manuelle
git pull
npm install
npm run build

Configuration (Setup)

# -----------
# Server Configs
# -----------
LOG_LEVEL='info' # 'error' | 'warn' | 'info' | 'http' | 'verbose' | 'debug' | 'silly'
PORT=3000
NODE_ENV=production

# -----------
# Interface Configs
# -----------
THEME='dark' # 'dark' | 'light' | 'night'
CURRENCY='sat' # 'sat' | 'btc' | 'fiat'

# -----------
# Privacy Configs
# -----------
FETCH_PRICES=true # Récupération des prix BTC/fiat depuis Blockchain.com
FETCH_FEES=true # Récupération des frais on-chain depuis Earn.com
DISABLE_LINKS=false # Liens vers 1ml.com et Blockchain.com
NO_VERSION_CHECK=false # Vérification de version depuis GitHub

# -----------
# TOR (optionnel)
# -----------
TOR_PROXY_SERVER='socks://127.0.0.1:9050' # Pour proxifier via TOR

# -----------
# Account Configs
# -----------
ACCOUNT_CONFIG_PATH='/chemin/vers/thubConfig.yaml' # Fichier de comptes

masterPassword: 'votre_mot_de_passe_principal'
accounts:
- name: 'Mon Nœud LND'
serverUrl: '127.0.0.1:10009'
macaroonPath: '/home/user/.lnd/data/chain/bitcoin/mainnet/admin.macaroon'
certificatePath: '/home/user/.lnd/tls.cert'
password: 'mot_de_passe_compte_specifique'
# Optionnel : compte avec macaroon en hexadécimal
- name: 'Nœud Distant'
serverUrl: 'ip.distante:10009'
macaroon: '0201056c6e6402f8...' # Macaroon en HEX ou Base64
certificate: '0202045c7365...' # Certificat en HEX ou Base64

# Option 1 : accès par IP
tlsextraip=<ip-externe-accessible>
rpclisten=0.0.0.0:10009

# Option 2 : accès par domaine
tlsextradomain=<domaine-externe-accessible>
rpclisten=0.0.0.0:10009

npm start

# Image standard
docker pull apotdevin/thunderhub:latest
docker run --rm -it -p 3000:3000/tcp apotdevin/thunderhub:latest

# Image avec base path /thub
docker pull apotdevin/thunderhub:base-v0.11.1

• Installation: docs.thunderhub.io/installation
• Configuration: docs.thunderhub.io/setup

Interface presentation

• Home - Home tab with general dashboard (overview of your node and quick actions).
• Dashboard - Customizable dashboard with widgets and advanced metrics.
• Peers - Lightning peer management (connections to other nodes).
• Channels - Detailed management of Lightning channels.
• Rebalance - Channel balancing tool (circular payments).
• Transactions - Lightning payment history (LN transactions).
• Forwards - Routing statistics (payments relayed by your node).
• Chain - Node's On-Chain wallet (On-Chain BTC: UTXOs, transactions).
• Amboss - Integration with Amboss (node monitoring, backups, etc.).
• Tools - Miscellaneous tools (backups, signed messages, macaroons, reports, etc.).
• Swap - On-Chain/Lightning swap functions via Boltz.
• Stats - Advanced statistics and node performance metrics.

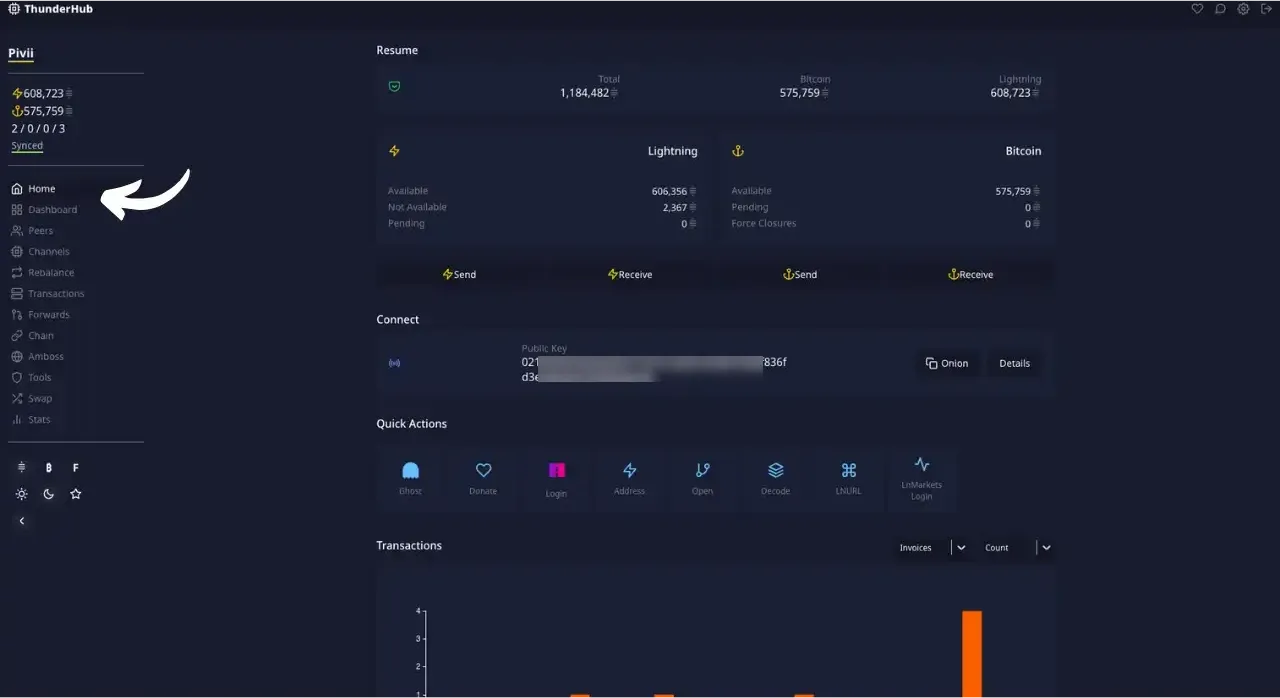

Home (General control panel)

• Balances and capacities: At the top of the page, ThunderHub displays your available balances. Here you'll typically see the On-Chain balance (Bitcoin On-Chain in the node's Wallet, symbolized by an anchor ⚓) and the Lightning balance (your channels' capacities, symbolized by a lightning bolt ⚡). This gives you an immediate idea of the funds you have in On-Chain and Lightning. If you have several accounts or channels, make sure you're on the right one (e.g. Mainnet vs Testnet).
• Key statistics: The dashboard can show some global metrics for your node - for example, number of open channels, number of connected peers, routing fees earned (if applicable), etc. It's a summary of the node's recent activity and health.
• Quick Actions: The dashboard features buttons for quickly executing the most common tasks, without having to navigate through menus. These quick actions include:
• Ghost: Set up a custom Lightning address via Amboss.
• Donate: Make a donation via Lightning.
• Login/Go To: Connect to your Amboss account (Quick Connect) and go directly to Amboss.space to view your node's information.
• Address: Enter a Lightning address to make a payment.
• Open: Open a new Lightning channel. Clicking opens a form for entering the URI of the remote node to which to open the channel, the amount and, if applicable, the maximum On-Chain fee to be used.
• Decode: Decode a Lightning invoice or LNURL to view details before payment.
• LNURL: Process LNURLs for Lightning payments or withdrawals.
• LnMarkets Login: Login to LnMarkets for trading.

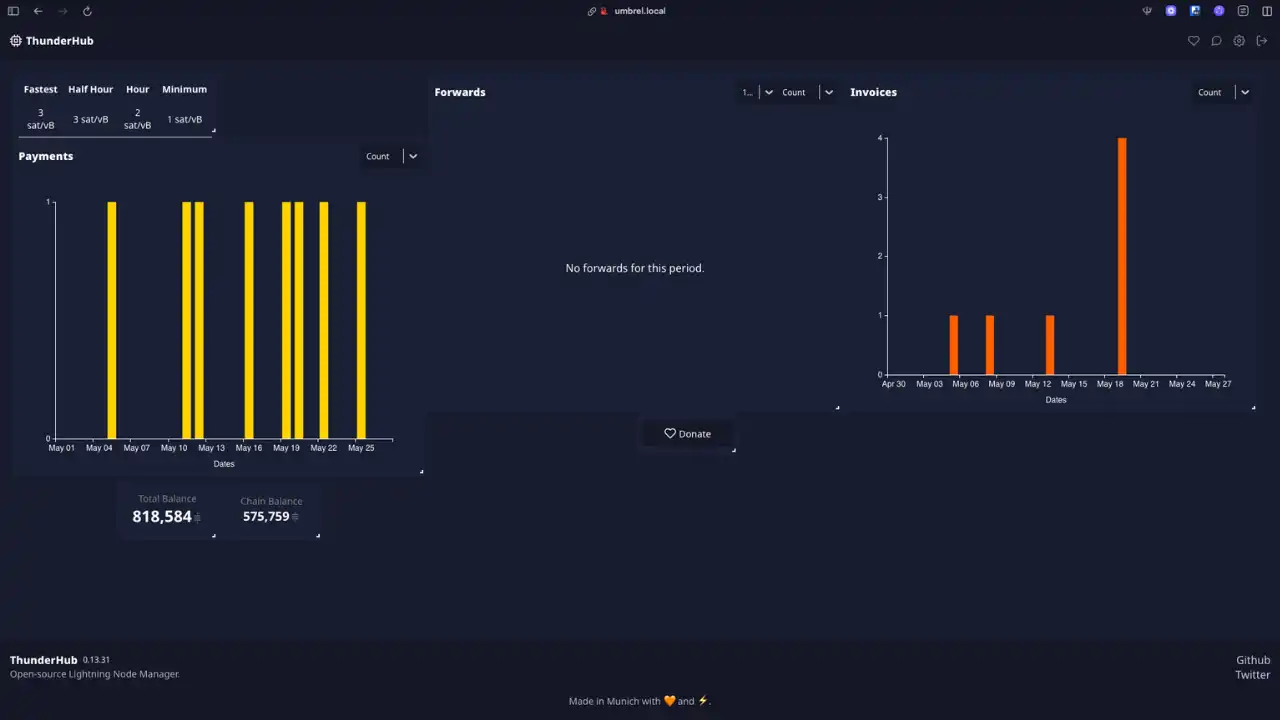

Dashboard

• Customizable widgets: Unlike the Home page, which has a fixed layout, the Dashboard lets you choose exactly which elements to display and how to organize them.

• Advanced metrics: Access more detailed statistics on your node's performance, with graphs and real-time data.
• Configurable overview: Tailor the display to suit whether you're a casual user or a professional operator managing multiple routing channels.
• Modular Interface: Add or remove widgets as required: forwards charts, liquidity metrics, node health alerts, etc.

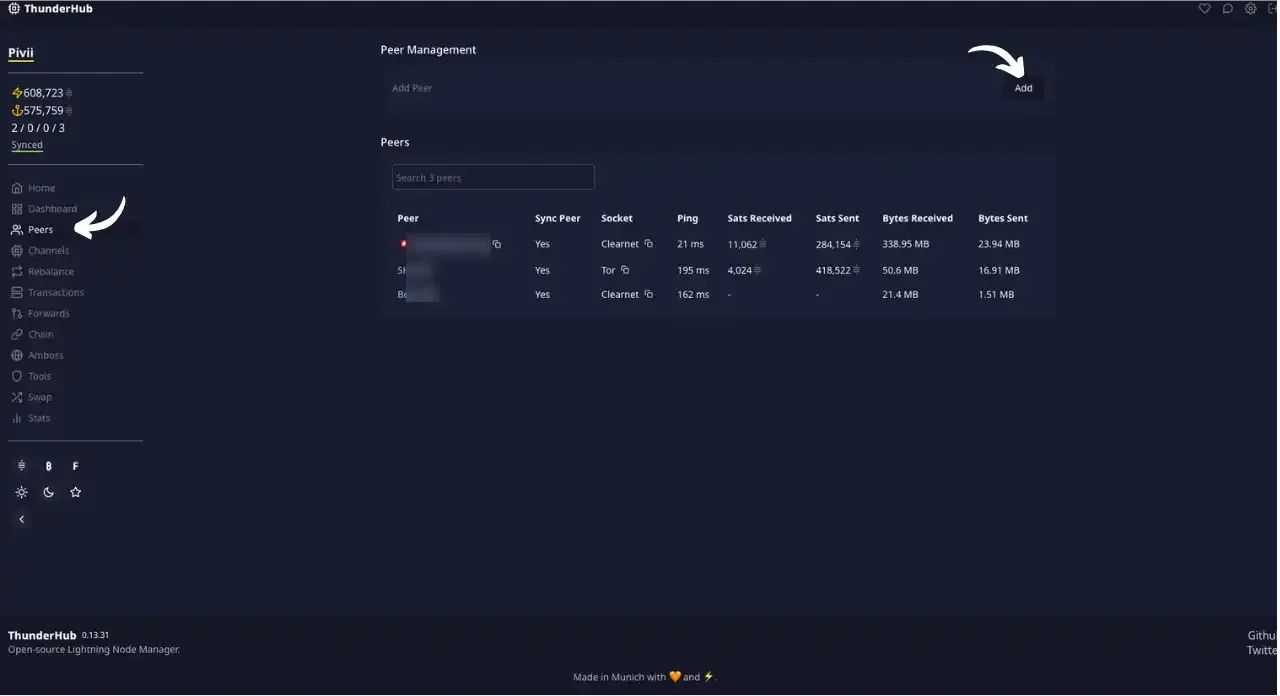

Peers

• Information columns: The Interface displays useful details such as synchronization status, connection type (clearnet or Tor), ping, satoshis received/sent and volume of data exchanged.
• Add a peer: ThunderHub lets you manually connect to a new peer via the "Add" button in the top right-hand corner. You'll need to enter the node's URI (format <public_key>@<socket>). Once validated, ThunderHub sends the corresponding lncli connect command. If the node is online and accessible, it will be added to your list of peers.

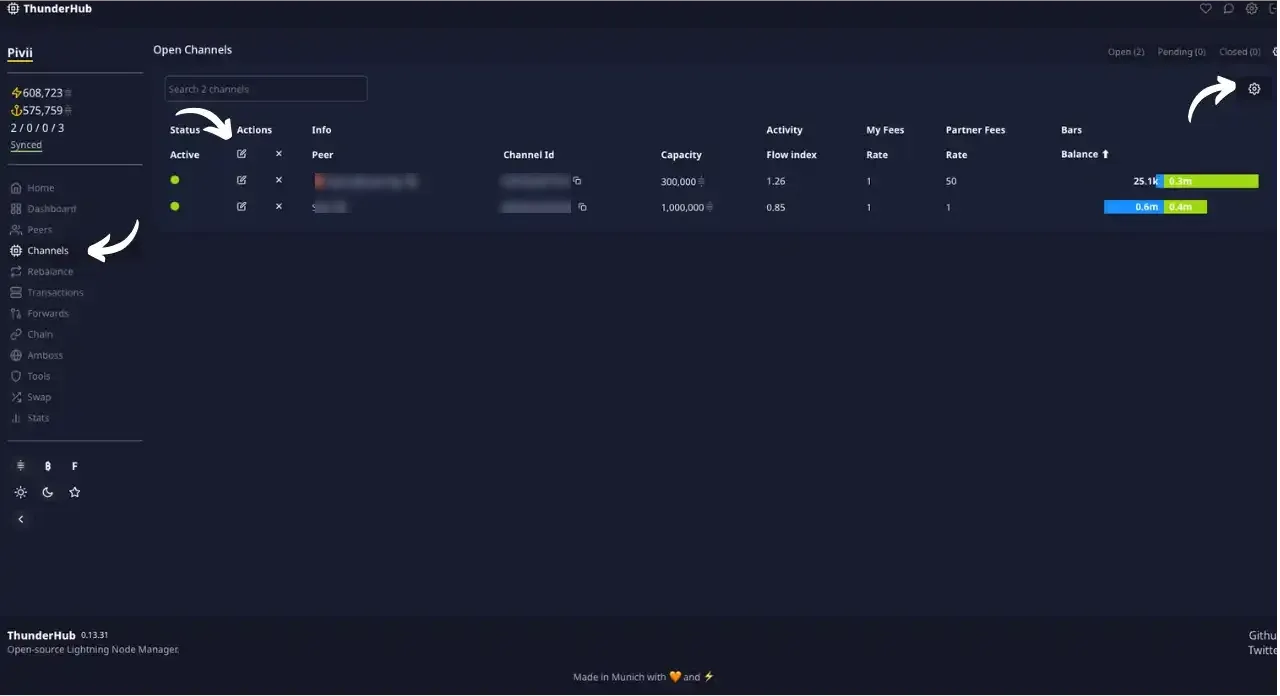

Channels

• Channel list view: Each open (or opening/closing) channel is listed, usually with the alias of the remote node, the total channel capacity, and a colored bar illustrating the distribution of local vs. remote liquidity. ThunderHub uses a color code (often blue/green) or percentage to indicate channel balance: for example, blue for your local share, green for the remote share. If a channel is perfectly balanced (50/50), the bar will be half of each color. This allows you to identify at a glance which channels are unbalanced (all blue = almost all local, all green = almost all remote).
• Information columns: The Interface displays detailed columns including Status, Available Actions, Peer Info, Channel ID, Capacity, Activity, Fees and Balance with graphical liquidity display.
• Display configuration: A cogwheel in the top right-hand corner lets you customize the channel display to suit your preferences.
• Status: You'll also see status indicators - e.g. Active (the channel is open and operational), Offline (the peer is disconnected, so the channel is momentarily unusable), Pending (for openings or closings awaiting On-Chain confirmation).
• Actions on a channel: For each channel, ThunderHub provides action buttons (often in the form of icons):

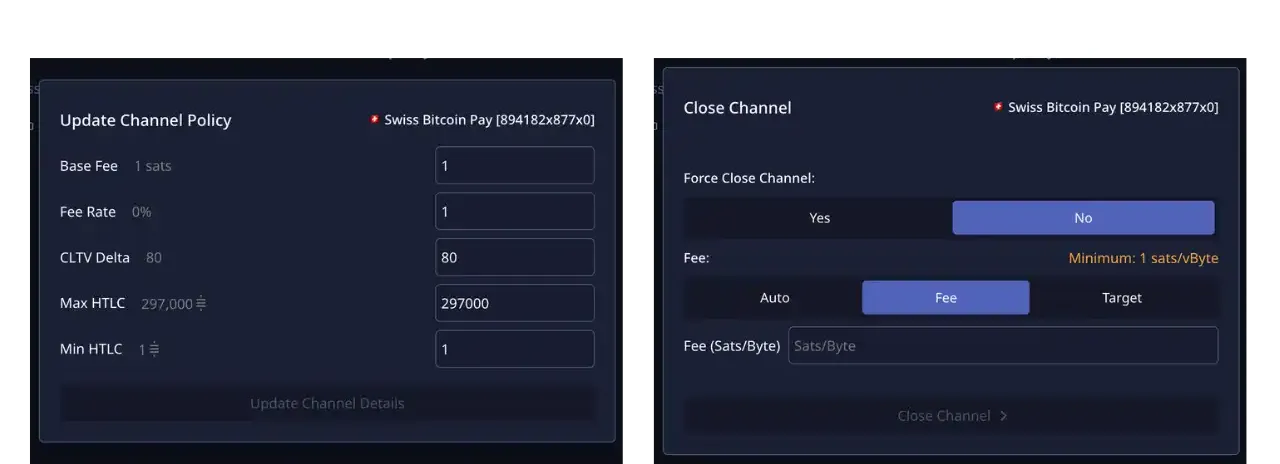

• Edit fees: The Interface "Update Channel Policy" lets you adjust all channel parameters: Base Fee, Fee Rate (in ppm), CLTV Delta, Max HTLC and Min HTLC. This allows you to adjust your fee policies individually per channel, with the aim of attracting (or discouraging) routing traffic. (Note: ThunderHub is not a substitute for an automatic fee management tool, but for manual adjustment it's very effective)
• Close Channel (Close): The Interface "Close Channel" gives you the choice between a cooperative close (default) or a forced close (Force Close) by defining the charges (in Sats/vByte). Important: always prefer cooperative close when possible, to avoid On-Chain settlement delays and higher fees. ThunderHub will tell you whether the peer is online (cooperative possible) or not. In the event of force close, be sure to confirm as this is irreversible and will trigger a sweeping transaction with a timelock (generally 144 blocks or ~1 day on Bitcoin Mainnet).
• Open a new channel: To open a new channel, click on the cogwheel at the top right of the Channels page, then select "Open". You can then initiate a channel to a new or existing peer. The advantage of using this page is that you have a list of your existing channels in front of you, which can help you decide where to open a new channel.

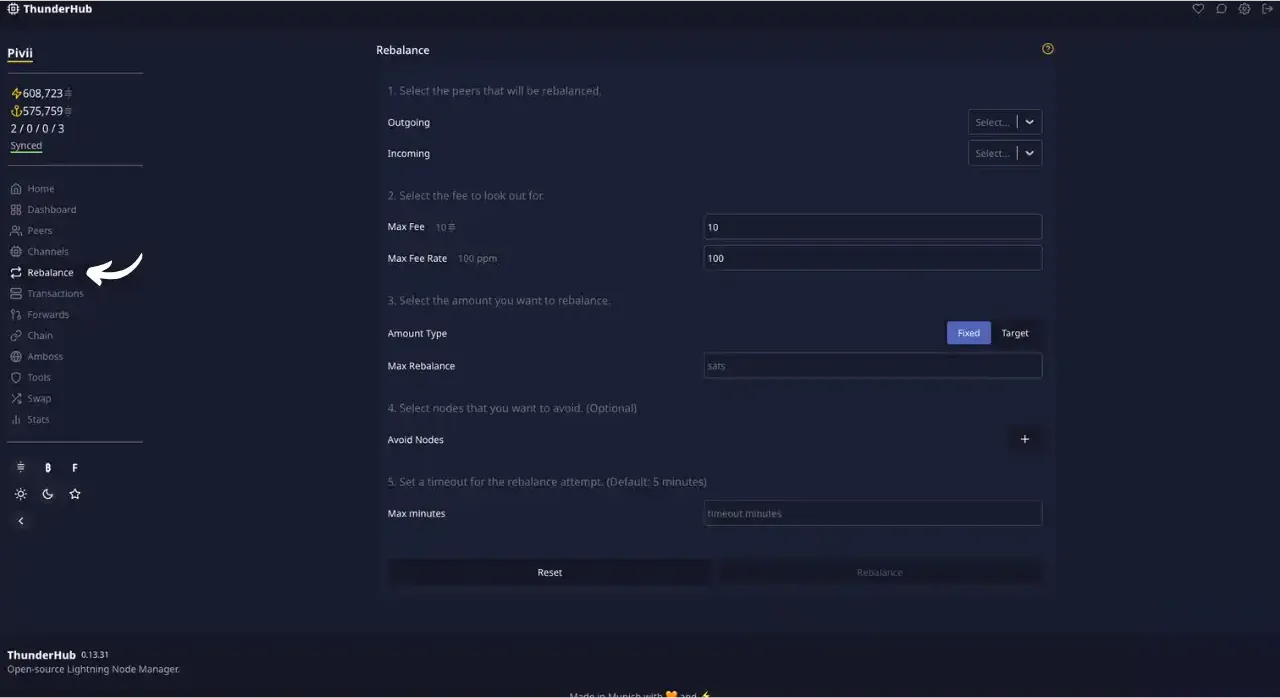

Rebalance

• Initial channel view: On entering Rebalance, ThunderHub displays a list of your channels, with a balance indicator for each (similar to the one on the Channels page). You can see right away which channels are out of balance. ThunderHub can sort channels in order of increasing balance, so that the most unbalanced channels stand out at the top of the list (0.0 meaning entirely local or remote).
• Peer selection: The Interface makes it easy to select outgoing and incoming peers for rebalancing.
• Parameter settings: You can set :
  • The maximum fee (in Sats and ppm) you're willing to pay
  • The amount to rebalance with "Fixed" or "Target" option
• Nodes to avoid when routing
• Maximum trial time for route finding
• Select source channel: First select the outgoing (source) channel, i.e. the channel from which you have too much local liquidity to move. In practice, this is a channel where your local share is high (> 50%). Let's imagine an A channel with 1,000,000 Satss, 900,000 of which are local - a good candidate for sending Satss elsewhere. By clicking on this A channel as "outgoing", ThunderHub marks it as a source.
• Choose target channel: Next, choose the incoming (target) channel that needs to receive liquidity. Typically, this will be a channel where it's the other way around - most funds are on the far side (e.g. only 100,000 local Satss out of 1,000,000). ThunderHub, once the source channel has been selected, will sort the other channels in reverse order (decreasing balance) to help identify the most complementary channels. Select a B channel that has room on the local side. ThunderHub will then clearly display which two channels have been selected (source A and target B).
• Set fee amount and tolerance: A form allows you to enter :
  • The amount to be rebalanced (in Sats). Often, we choose an amount equal to what would balance both channels at ~50/50. ThunderHub can pre-fill half the excess capacity of the source channel, for example.
  • The maximum fee you are willing to pay for this operation (optional). This fee is expressed in Sats (total cost of circular routing). If you leave it blank, ThunderHub will search for a path regardless of cost, which is generally not advisable (it's better to set a limit, e.g. 10 Sats for a small rebalance, or a maximum ppm).
• Find Route: Click on the button to find a route. ThunderHub queries LND to calculate a route from your source channel through the network to your own target channel. If it finds a possible route that meets your fee criteria, it displays it with details of the hops and the fee cost. For example, it might indicate that it has found a 3-hop path with a total of 2 Sats in charges.
• Start rebalance: If you are happy with the proposed route, click on Balance Channel. ThunderHub will then initiate circular payment via LND. If the payment is successful, you'll see a notification of success, and channels A and B will have their balances modified in real time. ThunderHub will update the balance indicator for these channels (ideally they will be greener than before, indicating better balance).
• Adjustments and iterations: If no route is found on the first try (or if it's too expensive), you can adjust the parameters:
  • Try a smaller amount (sometimes a partial rebalance goes through while a large amount fails).
  • Increase the maximum fee gradually, but be careful not to pay more in fees than it's worth.
  • Use the Get Another Route button, if available, to try an alternative.
  • Try another pair of channels if things really get sticky.

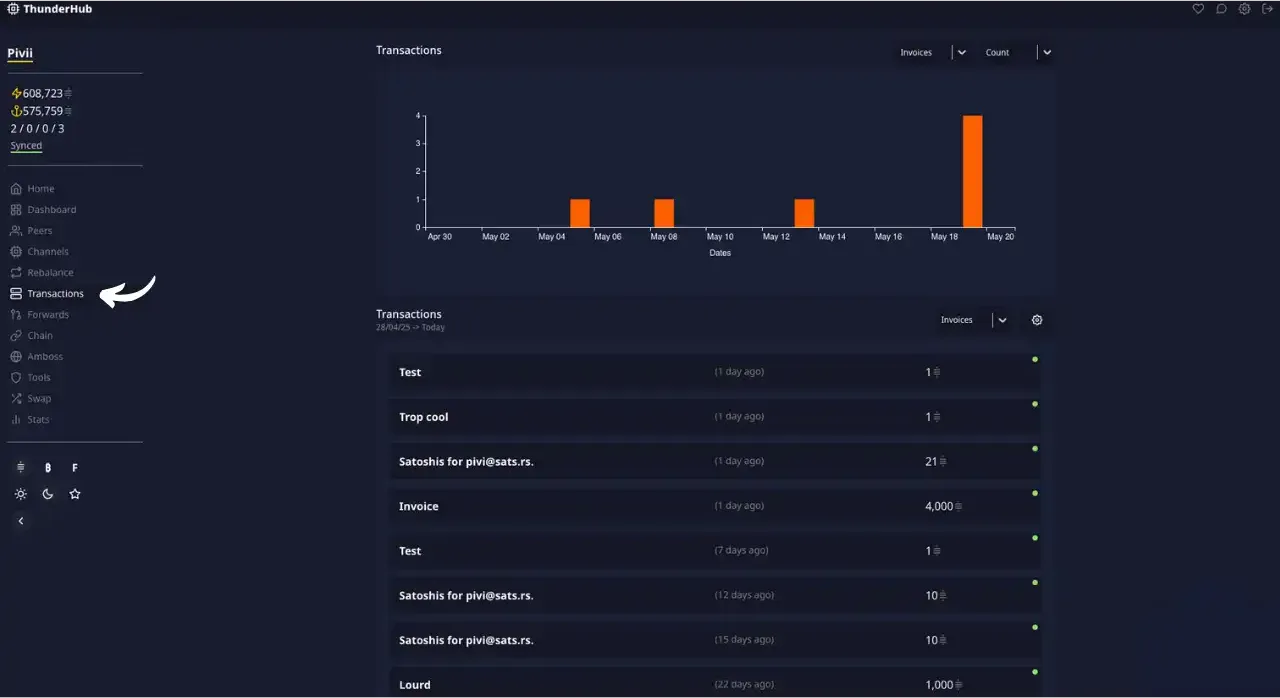

Transactions

• Invoice graph: In the top right-hand corner, a graph shows the evolution of invoices received over time, allowing you to visualize your node's activity.
• A chronological list of all Lightning transactions made from or to your node. Each entry can show :
  • Type of operation: sent payment (outgoing payment) or received payment (inbound, via a paid Invoice).
  • The amount in Sats.
  • Date/time.
  • Payment ID (Hash or RHash pre-image) or comment (if you added a memo to Invoice).
  • Status: completed, or possibly in progress/failed (e.g. a payment awaiting resolution, but generally LND processes this quickly, so there's little "pending" here compared to On-Chain transactions).

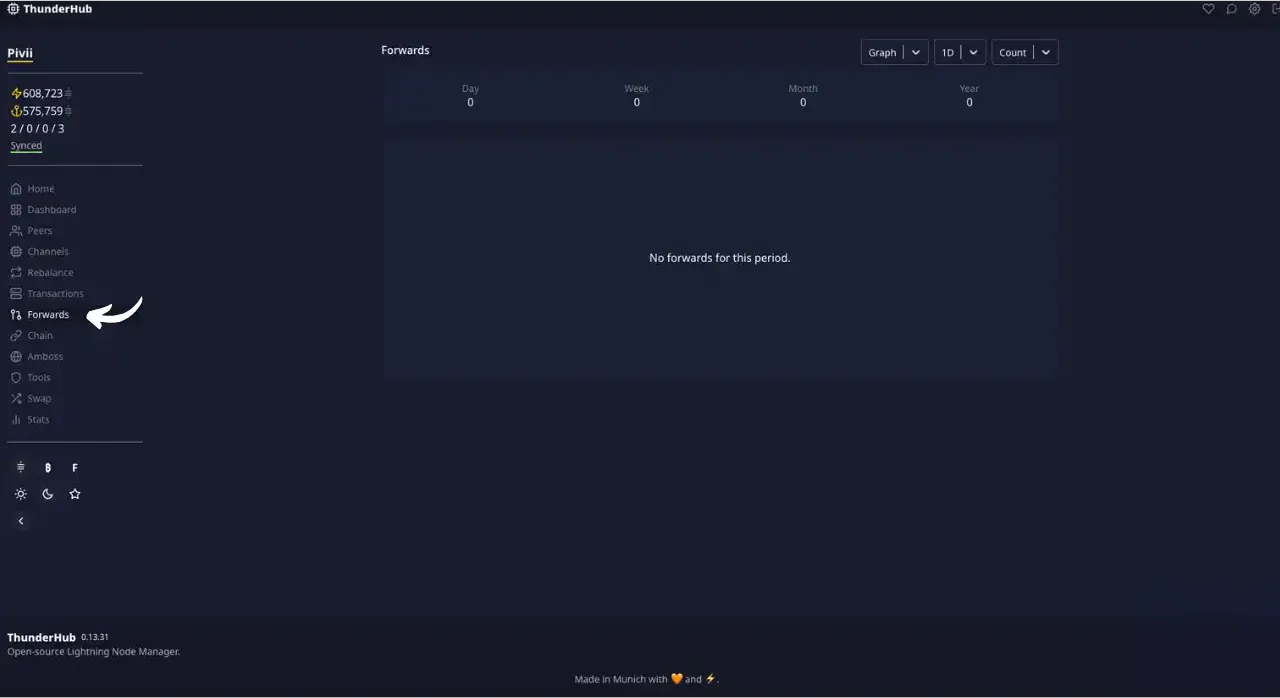

Forwards

• Filters and display options: At top right, filters let you sort data by day/week/month/year, and choose between graphical or tabular display.
• Activity message: If no routing has been performed during the selected period, the Interface displays "No forwards for this period", as shown in this example.
• A table of recent forwards: each entry corresponds to a payment that has been forwarded through your node. For each forward, we generally see :
  • timestamp,
  • the amount routed (in Sats),
  • the fee earned on this forward (in Sats, this is the difference between what you received on the incoming channel and sent on the outgoing one),
  • the incoming and outgoing channels used (often identified by the peer alias or channel ID).
  • status (normally completed, or failure if a forward failed en route).
• Aggregated statistics: ThunderHub calculates and displays at the top of the page totals and statistics over a given period (e.g. last 24 hours, or 7 days, etc., sometimes configurable).

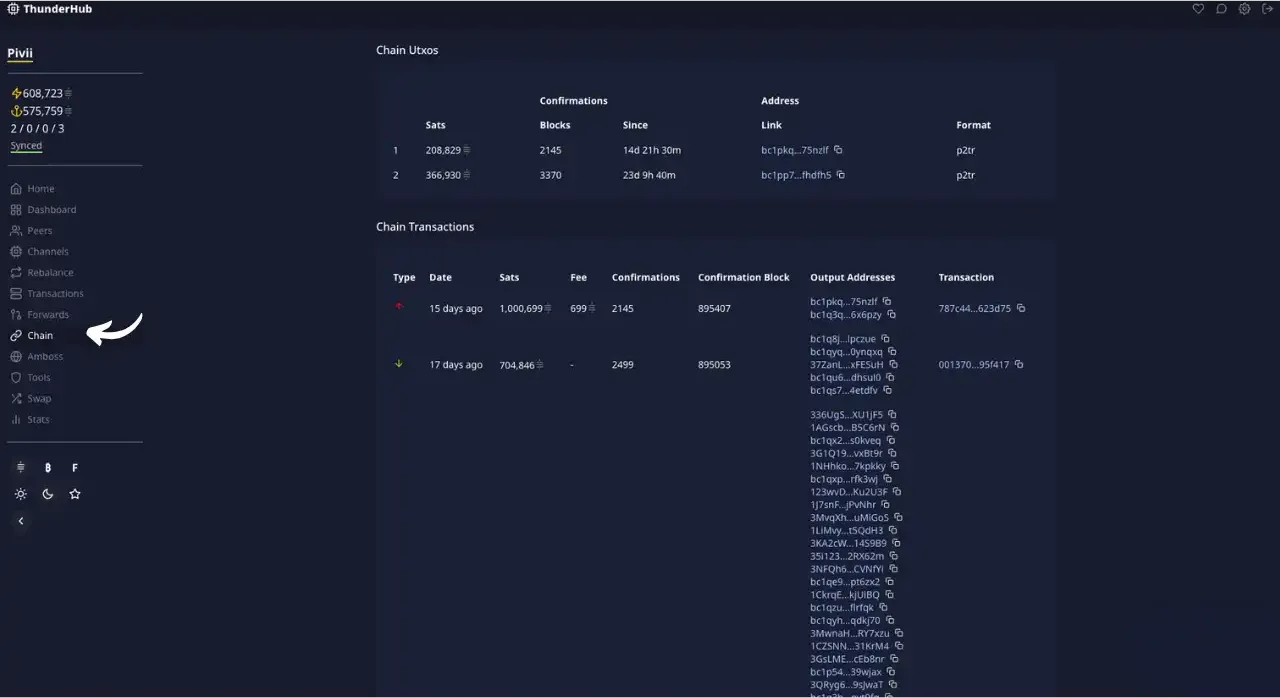

Chain

• Balance On-Chain: Displays the total BTC balance available in Wallet LND.
• List of UTXOs: View all unspent outputs (UTXO) with amount, confirmations, address and format for each output.
• Transaction history: Detailed table of all Bitcoin transactions with type (in/out), date, amount, charges, confirmations, inclusion block, addresses and txid.

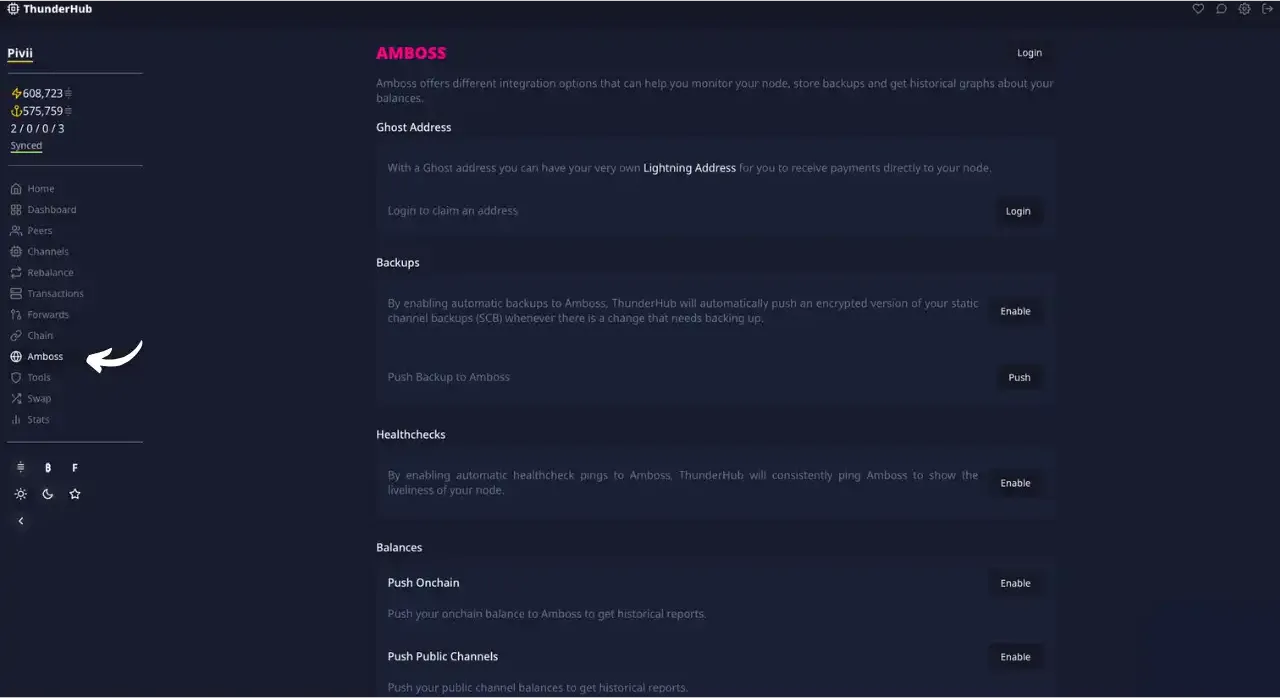

Amboss

• Ghost Address: Set up a personalized Lightning address for your node, facilitating incoming payments.
• Automatic channel backups:** Flagship feature for encrypted channel backups** (SCB files) on Amboss. Activate Amboss Auto Backup = Yes in the settings to automatically send encrypted backup updates each time you change channels. In the event of a failure, you'll be able to recover your funds thanks to this external backup.
• Health Checks: Activate Amboss Healthcheck = Yes to have your node send regular pings to Amboss. You'll receive alerts if your node appears to be offline.
• Other features: Automatic balance push, Magma/Hydro integration (liquidity marketplace), and access to detailed performance statistics.

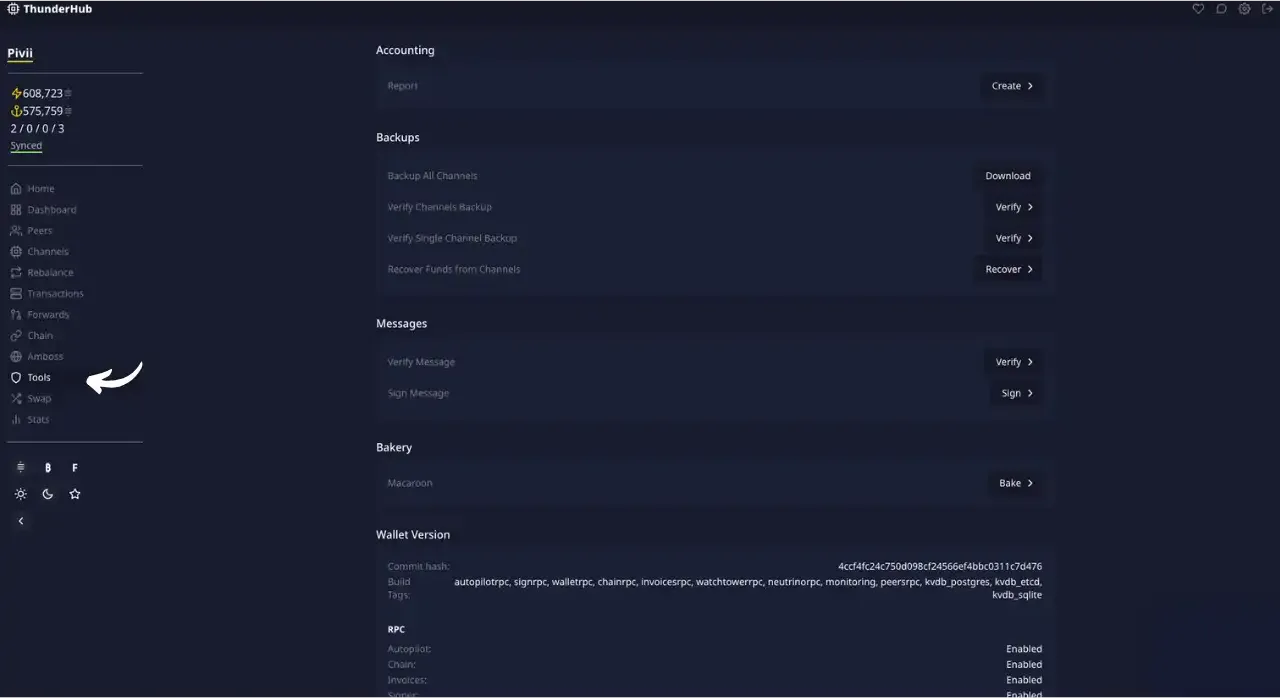

Tools

• Backups: Manually manage your channel backups (SCB). ThunderHub lets you download the complete backup file of your channels (option "Backup all channels -> Download"). Keep this channel-all.bak file in a safe place - it's essential for recovering your funds in the event of a crash. You can also import a backup file when redeploying a node.
• Accounting: Export tool for financial reports including fees earned/paid and volumes routed over a given period.
• Signed messages: Sign or verify messages with your node to prove ownership of your Lightning node via cryptographic signature.
• Macaroons (Bakery section):** Manage LND** macaroons to create customized access. The Interface "Bakery" allows you to precisely select each permission: "Add or remove Peers", "Create Chain Addresses", "Create Invoices", "Create Macaroons", "Derive Keys", "Get Access Keys", "Get Chain Transactions", "Get Invoices", "Get Wallet Info", "Get Payments", "Get Peers", "Pay Invoices", "Revoke Access Ids", "Send to Chain Addresses", "Sign bytes", "Sign Messages", "Stop daemon", "Verify bytes signature", "Verify messages", and so on. Each permission can be activated individually with the "Yes/No" buttons to create a tailor-made macaroon.
• System information: Display of Wallet version and activated RPCs.

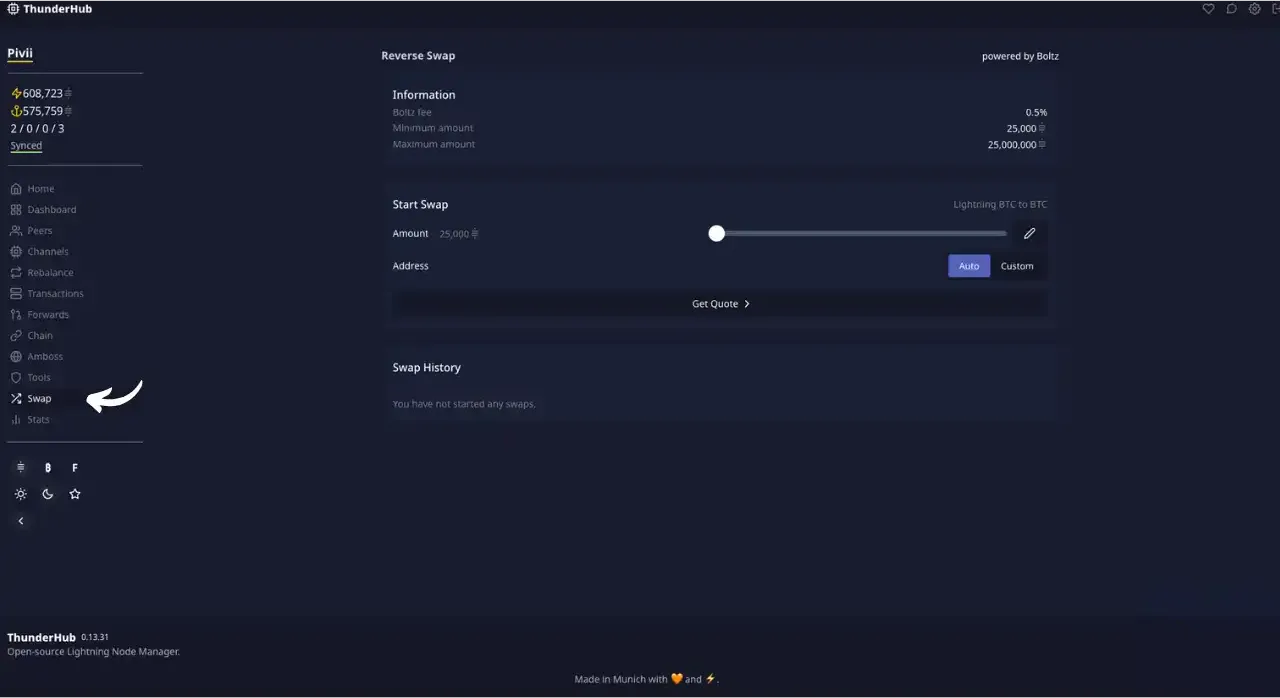

Swap

• Amount: Define the amount to be exchanged
• Address: Enter Bitcoin reception address
• Execution: ThunderHub communicates with Boltz to automatically process the exchange

• Non-custodial service (no cash custody)
• Preserve your existing channels
• Easy-to-use integrated Interface

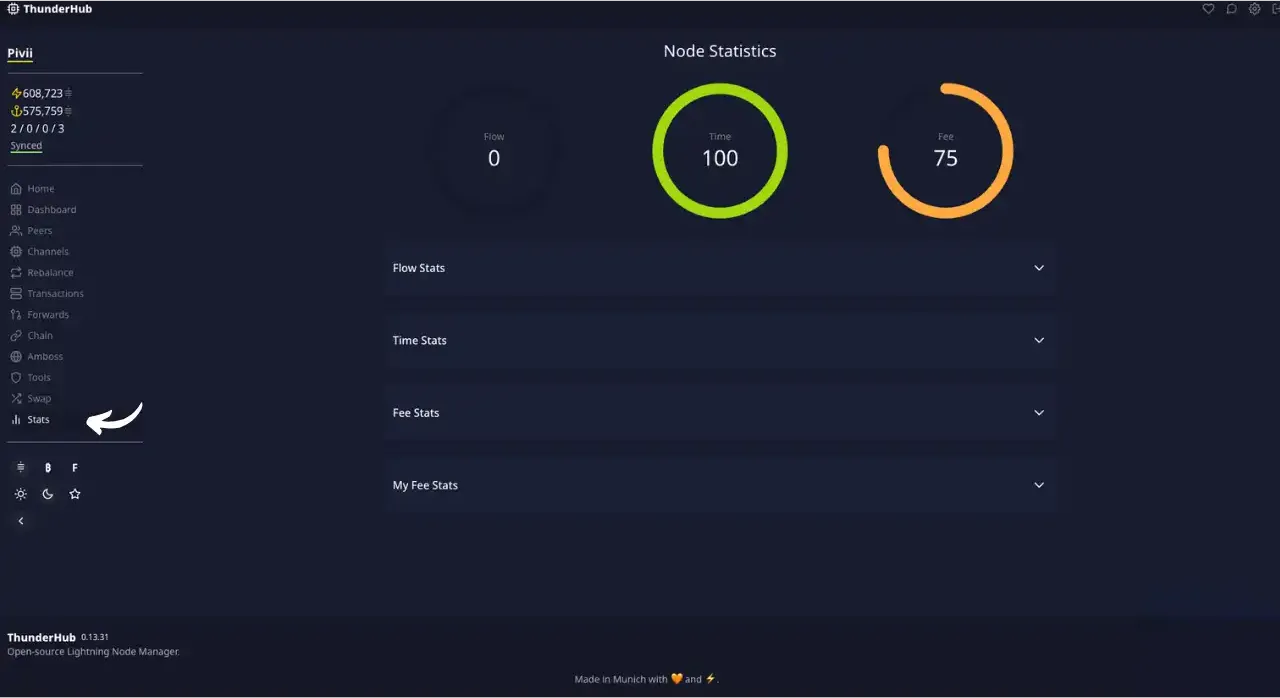

Stats

Conclusion

• Interface sleek and intuitive
• Powerful tools (rebalance, Boltz swaps, automatic backups)
• Compatible with Umbrel, Voltage, RaspiBlitz and other distributions

Resources

• Official website: thunderhub.io
• Documentation: docs.thunderhub.io
• GitHub source code: github.com/apotdevin/thunderhub
