Layer One Concepts

Bitcoin's Data Structures

Alekos Filini

Bitcoin Development Fundamentals

Bitcoin's Data Structures

Parsing Bitcoin blocks and transactions in Rust
Debugging and testing
Handling special cases and script parsing
Efficiency and security in Bitcoin mining

The primary goal of this lecture is to guide you through the process of parsing a Bitcoin block by coding a parser in Rust. This involves understanding the structure of Bitcoin blocks and transactions, and implementing the necessary logic to extract and interpret this data.

Parsing Bitcoin blocks and transactions in Rust

Components to parse

To parse a Bitcoin block, you'll need to focus on the following components:

Block header
Transactions within the block
Transaction inputs and outputs

Block header structure

The block header is the cornerstone of a Bitcoin block and contains the following fields:

Version: Indicates the version of the block.
Previous block: Reference to the previous block in the blockchain.
Merkle root: A hash representing the combined hash of all transactions in the block.
Timestamp: The time at which the block was mined.
Bits: The target threshold for a valid block hash.
Nonce: The value that miners adjust to achieve a hash below the target threshold.
Transaction count: The number of transactions in the block.

Note: Only the first 80 bytes (comprising the block header) are hashed during mining.

Simplifications

To keep our example manageable:

We will focus on parsing pre-SegWit (legacy) blocks, avoiding the added complexity of Segregated Witness.
We will skip certain opcodes in the Bitcoin scripting language, focusing on a few that we need to parse a full block.

Transaction structure

Each transaction in a Bitcoin block contains the following:

Version: The version of the transaction.
Number of inputs: Count of transaction inputs.
Inputs: The list of the inputs.
- Previous output (outpoint): The previous output reference.
  - Hash: The hash of the referenced transaction.
  - Index: The index of the specific output in the transaction, called "vout".
- Script length: The length of the signature script.
- Signature script: Script for confirming transaction authorization.
- Sequence: Transaction version as defined by the sender.

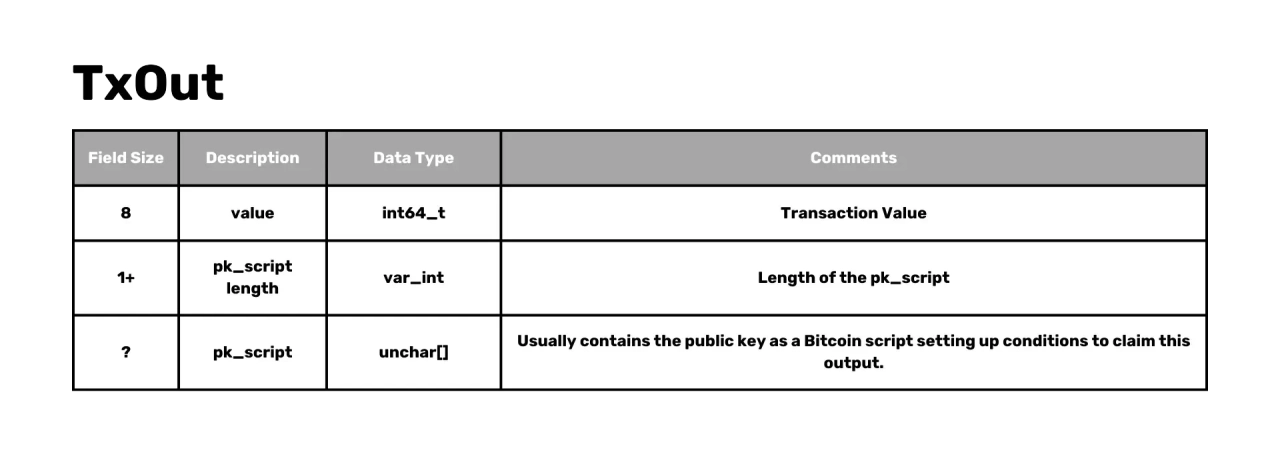

Number of outputs: Count of transaction outputs.
Outputs: Contains Value and ScriptPubKey.
- Value: Transaction value.
- PubKey script length: Length of the PubKey script.
- PubKey script: Contains the public key as a setup to claim the output.
Lock Time: Indicates the block height or timestamp at which this transaction can be included in a block.

Parsing techniques

In Rust, we can use various techniques to parse these structures:

Utilize from_le_bytes for reading Little Endian data.
Implement a custom parse trait to handle the parsing logic for different structures.

trait Parse: Sized {
    fn parse(bytes: &[u8]) -> Result<(Self, &[u8]), Error>;
}

Implement parsing generically for lists and specific types such as VarInt, U32, U64, etc.

impl Parse for i32 {
    fn parse(bytes: &[u8]) -> Result<(Self, &[u8]), Error> {
        let val = i32::from_le_bytes(bytes[0..4].try_into()?);
        Ok((val, &bytes[4..]))
    }
}

Debugging and testing

To ensure our parser works correctly:

Compare parsed data against known block details (e.g., from mempool.space).
Validate that parsed transaction counts and block details match expected values.

Handling special cases and script parsing

Implementation of 'parse' function

We will implement the parse function to handle the full block, including the block header and transactions. This involves reading the block data and extracting the relevant fields.

impl Parse for Block {
    fn parse(bytes: &[u8]) -> Result<(Self, &[u8]), Error> {
        let (header, bytes) = Parse::parse(bytes)?;
        let (transactions, bytes) = Parse::parse(bytes)?;

        let block = Block {
            header, transactions
        };

        Ok((block, bytes))
    }
}

Block header modification

We need to adjust our parsing logic to remove the transaction count from the block header structure, treating it as a separate entity.

impl Parse for BlockHeader {
    fn parse(bytes: &[u8]) -> Result<(Self, &[u8]), Error> {
        let (version, bytes) = Parse::parse(bytes)?;
        let (prev_block, bytes) = Parse::parse(bytes)?;
        let (merkle_root, bytes) = Parse::parse(bytes)?;
        let (timestamp, bytes) = Parse::parse(bytes)?;
        let (bits, bytes) = Parse::parse(bytes)?;
        let (nonce, bytes) = Parse::parse(bytes)?;

        let header = BlockHeader {
            version, prev_block, merkle_root, timestamp, bits, nonce,
        };

        Ok((header, bytes))
    }
}

Structure definition

Define a new structure Block that contains both the block header and a list of transactions.

struct Block {
    header: BlockHeader,
    transactions: Vec<Transaction>,
}

Rust syntax elements

Introduce Rust syntax elements such as the question mark (?) for error handling. This will simplify our code and make it more readable.

Assertions

Add assertions to verify that no bytes are left unparsed after processing a full block. This ensures the integrity of our parsing process.

Special cases like coinbase transactions

Coinbase transactions, which are the first transaction in a block used to claim the block reward, have unique characteristics. We need to handle these special cases appropriately.

struct OutPoint {
    txid: [u8; 32],
    vout: u32,
}

impl OutPoint {
    fn is_coinbase(&self) -> bool {
        self.txid == [0; 32] && self.vout == 0xFFFFFFFF
    }
}

Script parsing strategy

To parse the script in transactions, we will focus on common opcodes such as OP_CHECKSIG, OP_HASH160 and OP_PUSH. Parsing these scripts is crucial for validating transactions and handling errors.

enum OpCode {
    False,
    Return,
    Dup,
    Equal,
    CheckSig,
    Hash160,
    EqualVerify,
    Push(Vec<u8>),
}

impl Parse for OpCode {
    fn parse(bytes: &[u8]) -> Result<(Self, &[u8]), Error> {
        match bytes[0] {
            v @ 1..=75 => {
                let data = bytes[1..(v as usize + 1)].iter().cloned().collect();
                Ok((OpCode::Push(data), &bytes[(v as usize + 1)..]))
            },
            76 => {
                let len = bytes[1] as usize;
                let data = bytes[2..(len + 2)].iter().cloned().collect();
                Ok((OpCode::Push(data), &bytes[(len + 2)..]))
            },

            0 => Ok((OpCode::False, &bytes[1..])),

            106 => Ok((OpCode::Return, &bytes[1..])),
            118 => Ok((OpCode::Dup, &bytes[1..])),
            135 => Ok((OpCode::Equal, &bytes[1..])),

            136 => Ok((OpCode::EqualVerify, &bytes[1..])),
            169 => Ok((OpCode::Hash160, &bytes[1..])),
            172 => Ok((OpCode::CheckSig, &bytes[1..])),

            _ => todo!()
        }
    }
}

Challenges in script parsing

Script parsing can present challenges, particularly with coinbase transactions. It's important to account for edge cases and handle them correctly to ensure accurate parsing.

impl Parse for Script {
    fn parse(bytes: &[u8]) -> Result<(Self, &[u8]), Error> {
        let (len, bytes) = VarInt::parse(bytes)?;
        let mut script_bytes = &bytes[..len.0 as usize];
        let mut opcodes = Vec::new();
        while !script_bytes.is_empty() {
            let (opcode, bytes) = OpCode::parse(script_bytes)?;
            script_bytes = bytes;
            opcodes.push(opcode);
        }

        Ok((Script(opcodes), &bytes[len.0 as usize..]))
    }
}

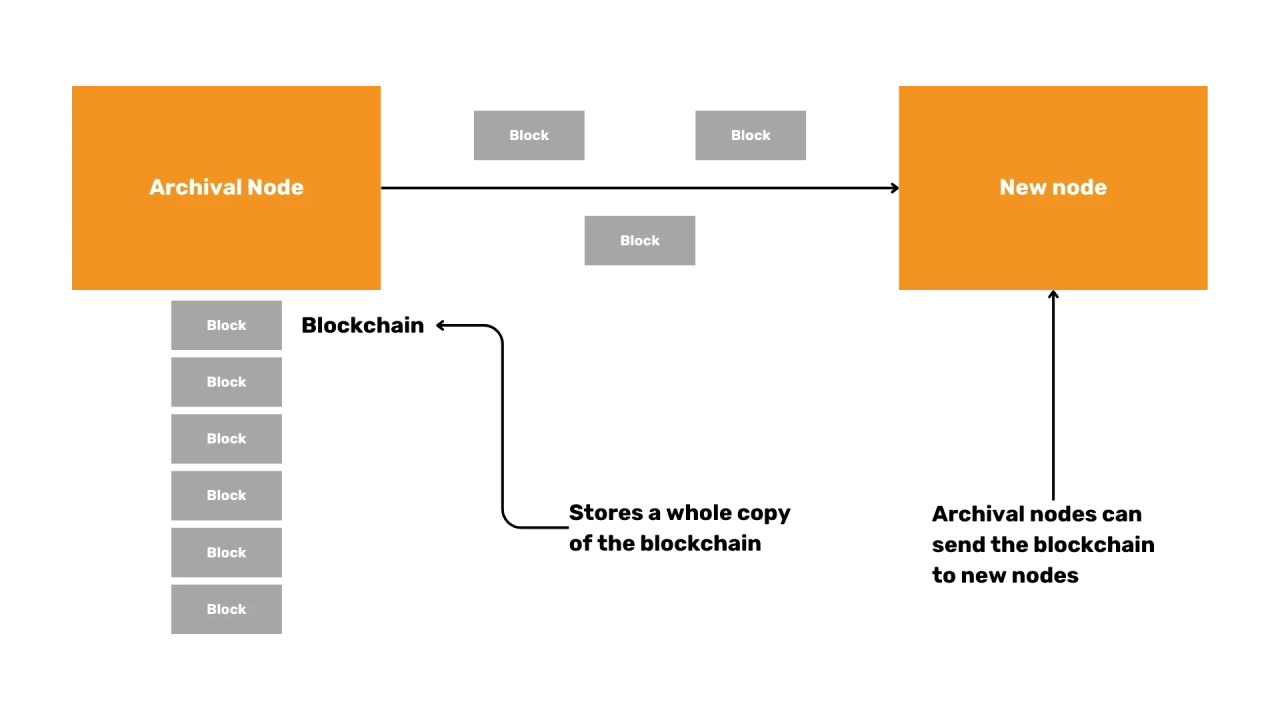

Compact blocks

The use of compact blocks are currently used to enhance the efficiency of data transmission between nodes. This reduces bandwidth usage and speeds up synchronization by sending the transactions that weren missing in the mempool, filling them with the transaction the node already had in a block, and then validating it.

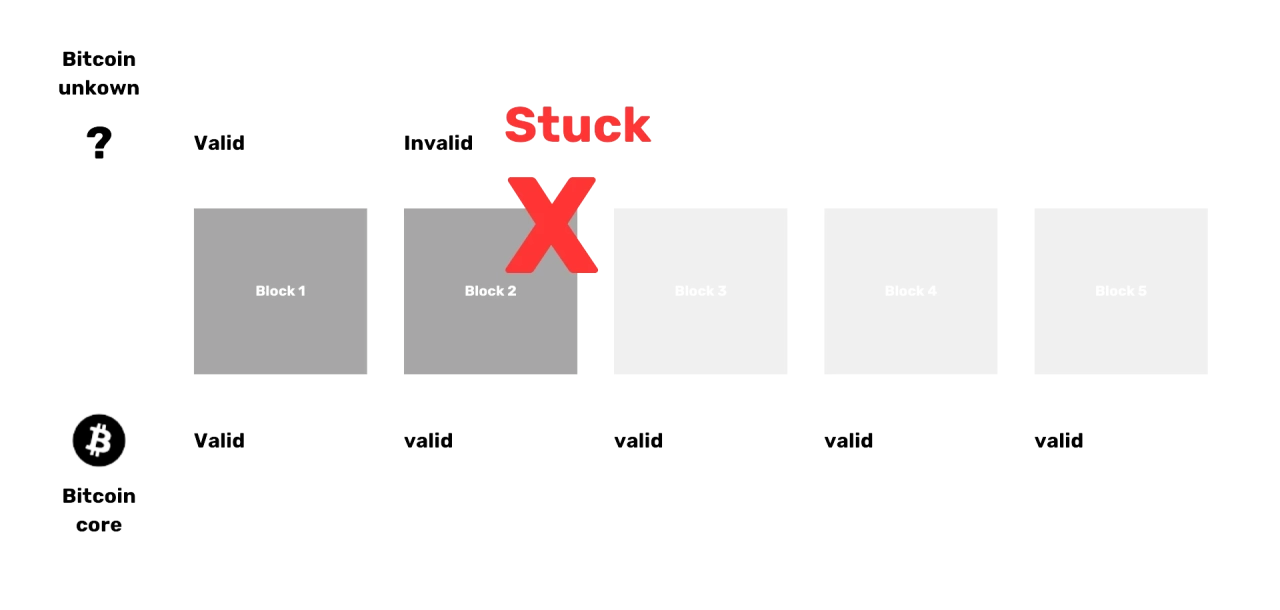

Use of existing libraries

For consensus-critical applications, it is recommended to use existing libraries to avoid bugs and ensure security like rust-bitcoin or bitcoin-dev-kit. Implementing your own parser can be educational but also risky in production environments.

Efficiency and security in Bitcoin mining

Efficiency in mining

Mining empty blocks can be more efficient for miners:

Miners start mining empty blocks to save time.
Empty blocks can be mined quickly before switching to a full block once the previous block is confirmed.

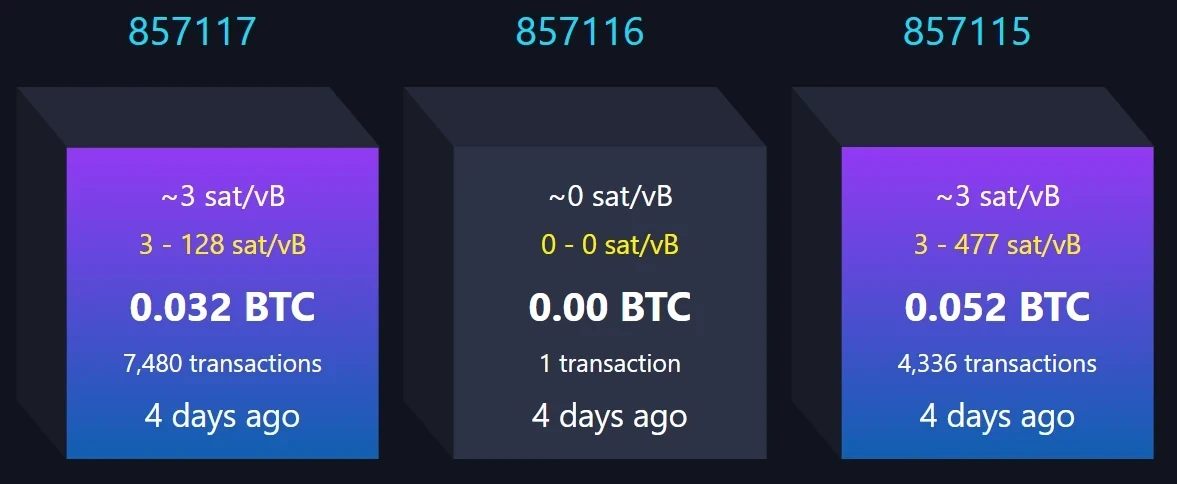

Reasons for mining empty blocks

Empty blocks are sometimes mined due to timing issues. Miners might not have received the full list of transactions by the time they start mining the next block, so they choose to mine an empty block instead.

Malicious mining of empty blocks

While malicious mining of empty blocks is possible, it has not been observed. The primary reason for empty blocks is the timing constraint rather than malicious intent.

Implications of empty blocks

The occurrence of empty blocks is a normal aspect of the mining process and is primarily due to timing issues. While they do not contain transactions, they still extend the blockchain and contribute to network security.

Importance of security

Security in Bitcoin mining is paramount. By adhering to best practices and using well-vetted libraries, miners and developers can ensure the integrity of the blockchain and protect against potential vulnerabilities.

In conclusion, parsing Bitcoin blocks and transactions in Rust involves understanding complex structures and implementing efficient parsing techniques. Handling special cases and script parsing requires careful consideration, and focusing on efficiency and security ensures the robustness of the Bitcoin network.
