The Bitcoin network operates as a trustless value exchange system, primarily serving as a settlement layer where transactions are recorded on a public ledger. This ensures security and immutability but comes with limitations, particularly in terms of transaction speed and fees. As a result, Bitcoin can be inefficient for everyday small transactions.

Enter the Lightning Network, which functions as a second layer on top of the Bitcoin blockchain. This payment network is designed to facilitate rapid and low-cost transactions. By opening a payment channel between two parties, they can transact off-chain, only recording the initial and final balances on the Bitcoin blockchain. This significantly reduces the load on the main network, enhancing scalability and making microtransactions feasible.

To grasp the concept better, consider the analogy of a bar tab. When you open a tab at a bar, you can continuously order drinks without paying after each one. Finally, you settle the total amount at the end of the night. Similarly, a Lightning channel allows multiple transactions off-chain, which are only settled on-chain when the channel is closed. Another analogy is an airport, where routing a payment through multiple nodes is akin to taking connecting flights to reach your destination. Each node (or "flight") helps direct your payment to where it needs to go, ensuring efficient routing.

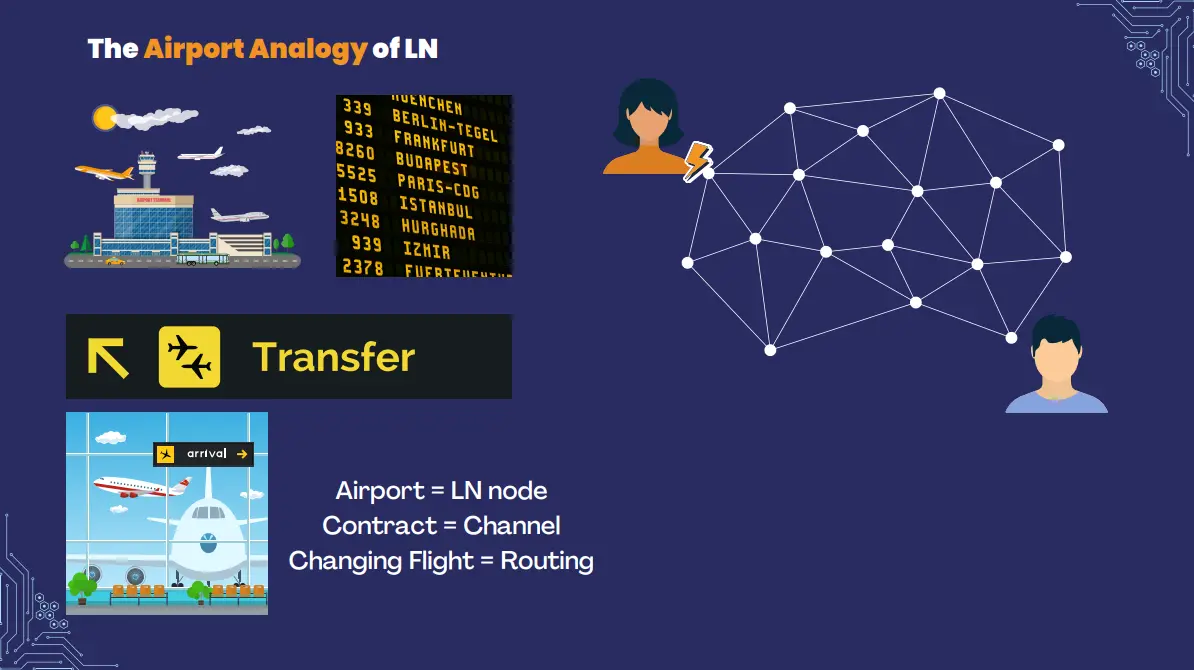

The airport analogy of LN

In essence, the Lightning Network complements the Bitcoin network by addressing its limitations, transforming it from a mere settlement layer into a versatile system capable of handling everyday transactions efficiently.

Lightning Network specifications

The Lightning Network protocol is meticulously defined through 10 BOLTs (Basis of Lightning Technology). These BOLTs were agreed upon during a conference in Milan and serve as the foundation for various implementations of the Lightning Network.

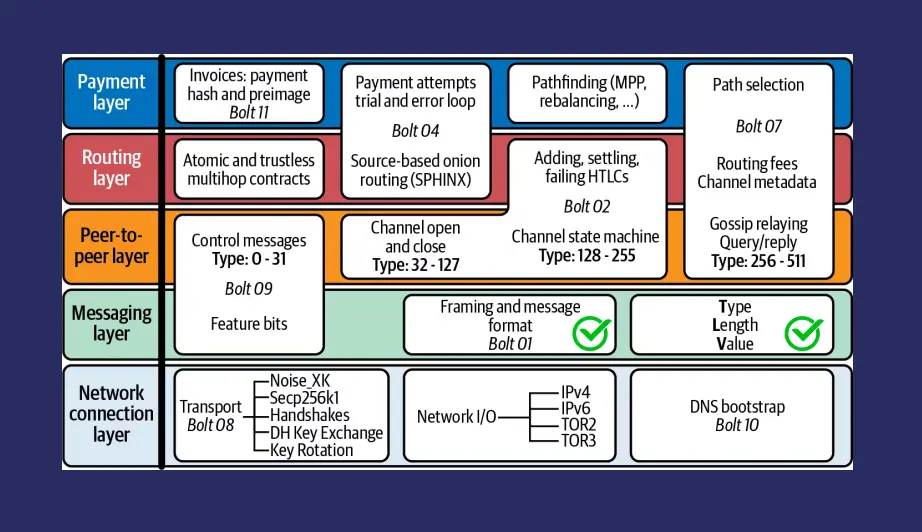

_BOLT Diagram _

BOLT 1 (base protocol)

BOLT 1 outlines the message formatting using a Type-Length-Value (TLV) structure, which ensures that messages are uniformly understood across different implementations. Communication is typically conducted via a specific TCP port, and the messages can be categorized into:

Communication messages: These include Init, Error, Warning, Ping, and Pong messages, which establish connections, handle errors, probe the connection status, and obfuscate traffic.
Channel setup messages: These are crucial during the establishment phase of a channel.
Channel state messages: These messages handle updates within active channels, ensuring both parties are in sync.
Gossip messages: These are used for network topology discovery and updates.
Experimental messages: These allow for testing new features without disrupting the network.

BOLT 2 (channel lifecycle)

BOLT 2 delves into the channel lifecycle, starting from establishment to normal operations and, eventually, settlement. Key processes include:

Channel establishment: In this phase, parties open a channel, exchange signatures, and create a funding transaction.
Normal operation: Here, the channel state is continuously updated using Hash Time-Locked Contracts (HTLCs). Commitment and revocation messages ensure both parties agree on the current state.
Settlement: This involves closing the channel, usually through mutual agreement and fee negotiation, to finalize transactions without entering an indefinite closure loop.

Update mechanism

HTLCs play a pivotal role in the network's payment routing, allowing secure transactions without trust. Commitment and revocation messages ensure mutual agreement on the channel's state and prevent fraud.

Special messages

Specific messages like Update Fee adjust miner fees for commitment transactions, while Channel Reestablish messages ensure both peers stay synchronized after disconnections.

Closing channels

Channels can be closed through mutual agreement, unilateral action, or punishment if cheating is detected. Proper closure finalizes transactions securely.

Swaps for liquidity management

Swaps enable on-chain withdrawals and efficient liquidity management without closing channels. Future solutions like splicing are being developed to enhance this process.

Security measures

Commitment transactions incorporate mechanisms like nLockTime, OPCheckSequenceVerify, and revocation keys to secure funds and prevent theft.

Routing & onion routing

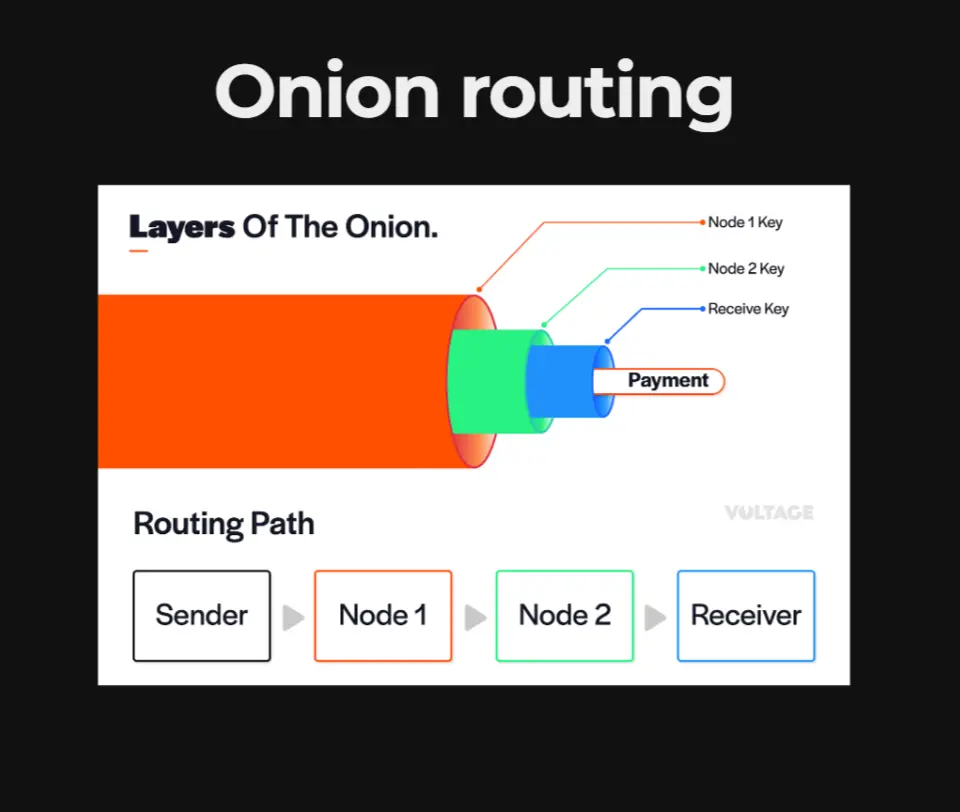

_Onion Routing diagram _

Payments are routed using Onion routing, which involves creating encrypted packets sent through multiple nodes. HTLCs secure the transaction, ensuring privacy and security.

Invoice structure

Lightning Network invoices (BOLT 11) are encoded in Bech32 and include details like payment hash, description, and expiry. Each invoice must be used once to prevent reuse issues.

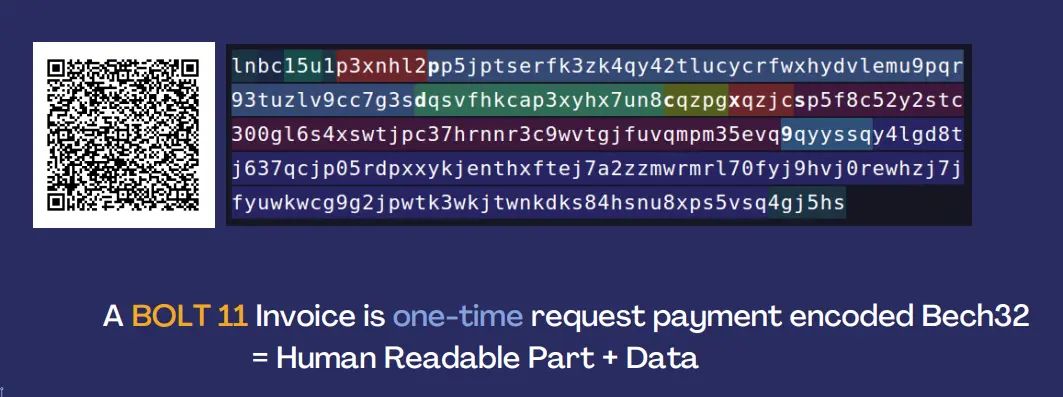

BOLT11 Invoice

Encryption & authentication

Handshake procedures and encryption (Chacha20) with authentication (Poly1305) ensure message integrity and privacy in Lightning transactions.

Alternatives

Other payment request methods like LNURL, KeySend, and BOLT 12 offer varying features and levels of adoption, providing flexibility in the network.

Network discovery

Network discovery in the Lightning Network has evolved from its initial use of IRC (Internet Relay Communication) to a more sophisticated protocol defined by BOLT 7. This protocol uses specific Lightning messages—commonly referred to as gossip messages—to discover and maintain the network topology.

Bolt7 messages

Key BOLT 7 messages include:

Node announcement: This message broadcasts the existence of a node.
Channel announcement: This message informs the network about the creation of a new channel.
Announcement signature: This ensures the authenticity of broadcast messages.
Channel update: This message communicates updates about a channel, such as fee structures and maximum HTLC amounts.

Channel announcement process

The process begins with local peers exchanging identity and channel details. After verifying signatures and funding transactions, they announce the channel to their network peers, ensuring that the entire network stays updated with the most recent topology changes.

DNS bootstrap

Discovering Lightning peers is facilitated by DNS and Bitcoin DNS seed queries, which provide IP and node information. This initial discovery mechanism helps nodes connect to the network quickly.

Feature announcements

Nodes can broadcast their supported features, ensuring backward compatibility while allowing for optional enhancements. This flexibility ensures that all nodes can interact smoothly, even as the protocol evolves.

Handling Bolt11 invoices

The network ensures the uniqueness of BOLT 11 invoices to avoid multiple payments for the same invoice. If an invoice is reused, network nodes intercept and prevent double payments, maintaining transaction integrity.

Voice Data transmission

Although possible, transmitting voice data via the Lightning Network is heavily compressed and limited by message size. An example application is Sphinx, which explores the innovative use of Lightning for data transmission.

Use cases and debates

The Lightning Network's purpose is a topic of ongoing debate. While primarily designed for payments, other use cases like data transmission are being explored, though not universally accepted. The community continuously discusses potential network applications and protocol enhancements.

Community discussions

The Lightning Network community is vibrant, engaging in continuous debate and discussion about use cases, protocol applications, and potential improvements. This collaborative environment fosters innovation while ensuring the network evolves to meet users' needs.

In conclusion, understanding the Second Layer Importance, Lightning Network Specifications, and Network Discovery mechanisms is crucial for anyone looking to delve into the intricacies of the Lightning Network. It's a complex but highly rewarding field that holds promise for transforming the future of digital transactions.
