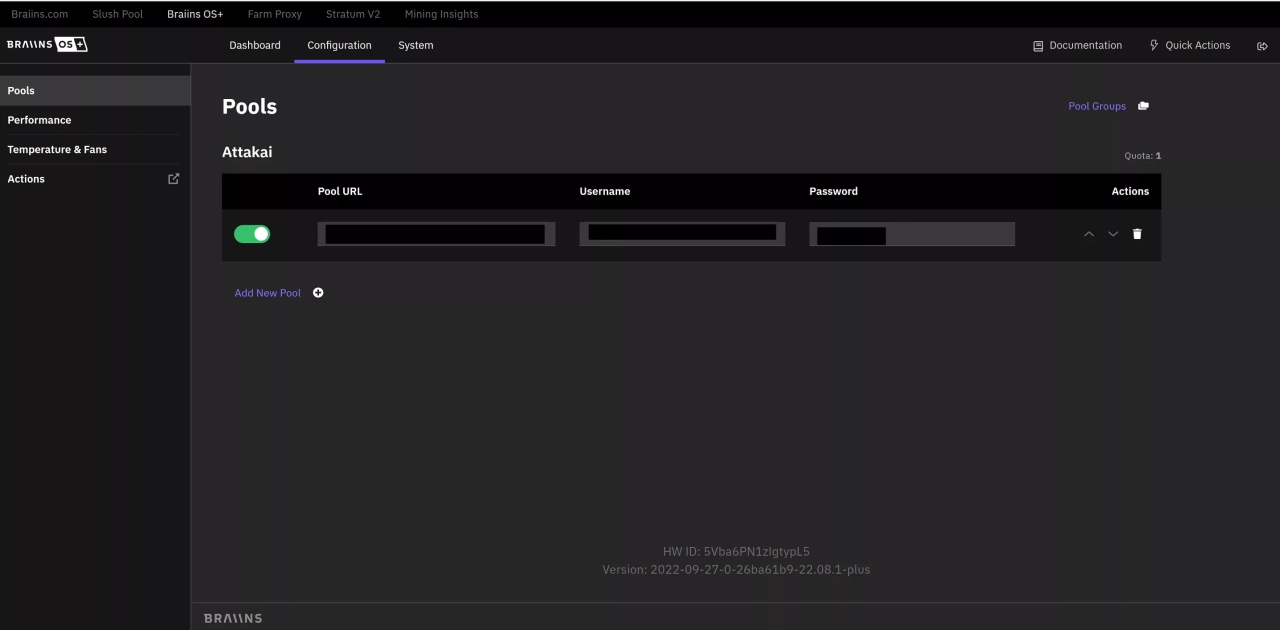

- Configuration

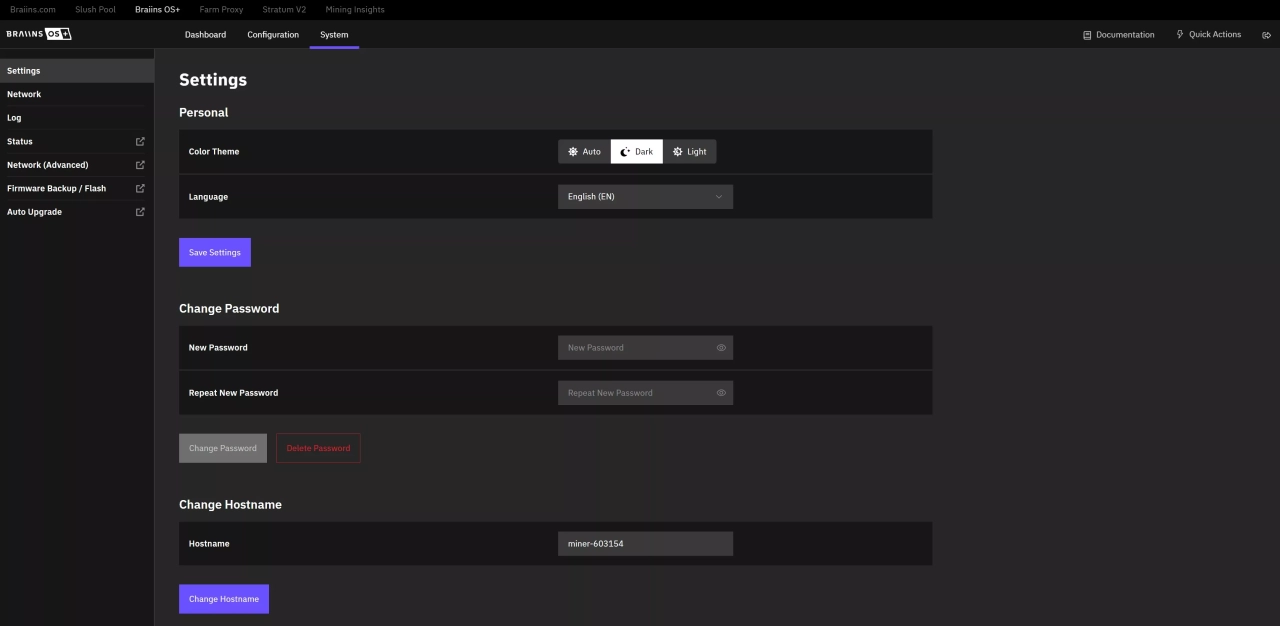

- System

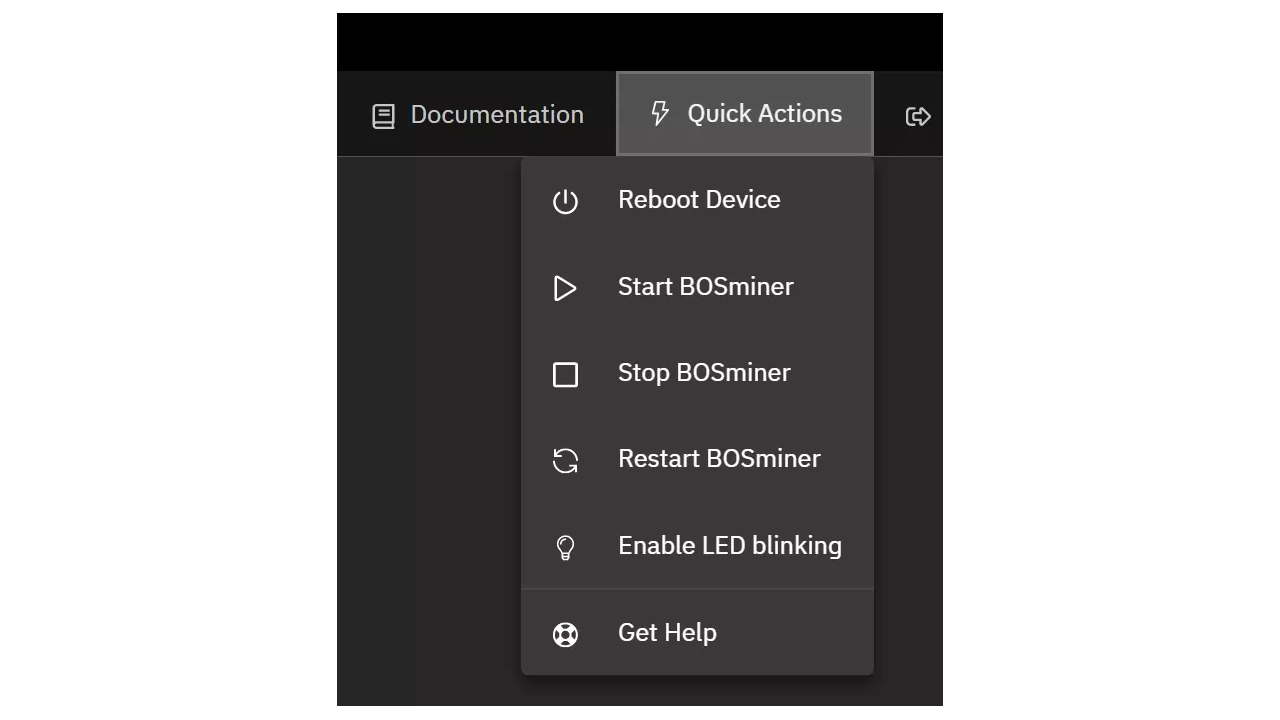

- Quick actions
You will need to connect to your ASIC using the local IP address of your device on your network through a browser.
You can find the IP address of your machine using the BOS toolbox tool or by accessing your router's web page directly.
The default credentials are the same as the original operating system.
- username: root
- password: (none)
You will then be greeted by the Brains OS+ Dashboard.

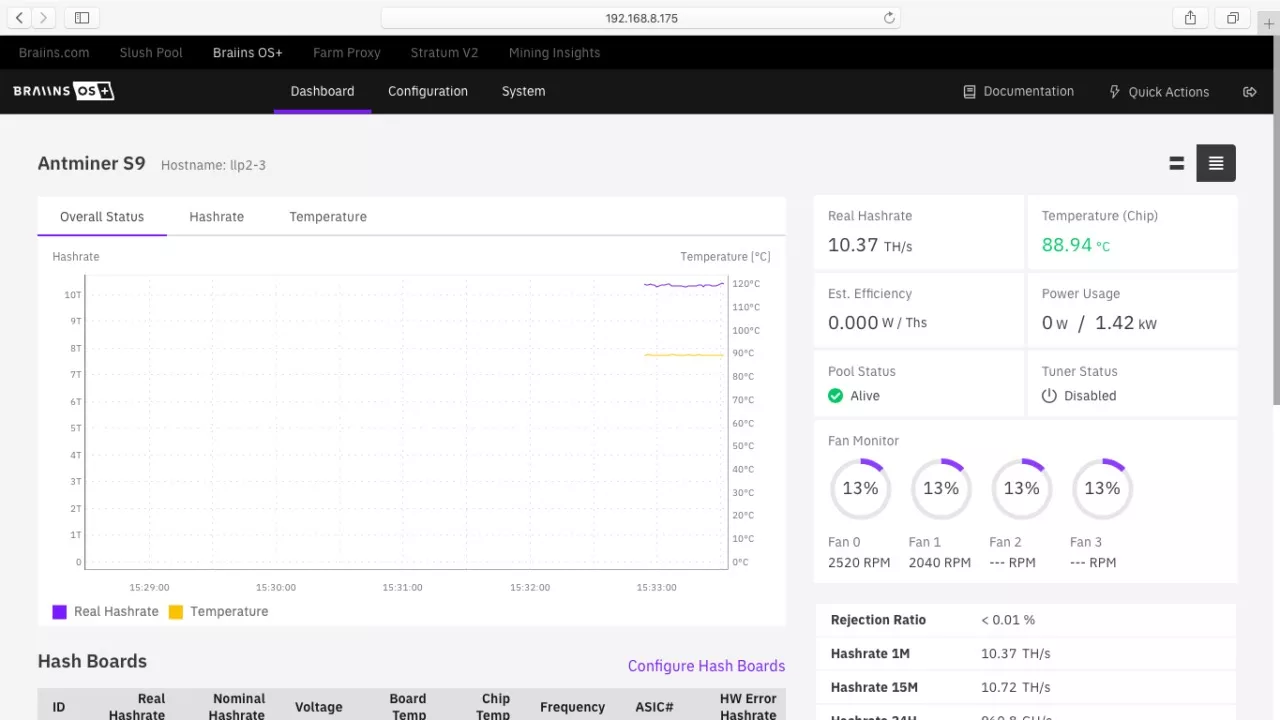

Dashboard
On this first page, you can observe the real-time performance of your machine.
- Three real-time graphs that show the temperature, hashrate, and overall status of your machine.
- On the right, the real hashrate, average chip temperature, estimated efficiency in W/THs, and power consumption.
- Below, the fan speed as a percentage of the maximum speed and the number of rotations per minute.

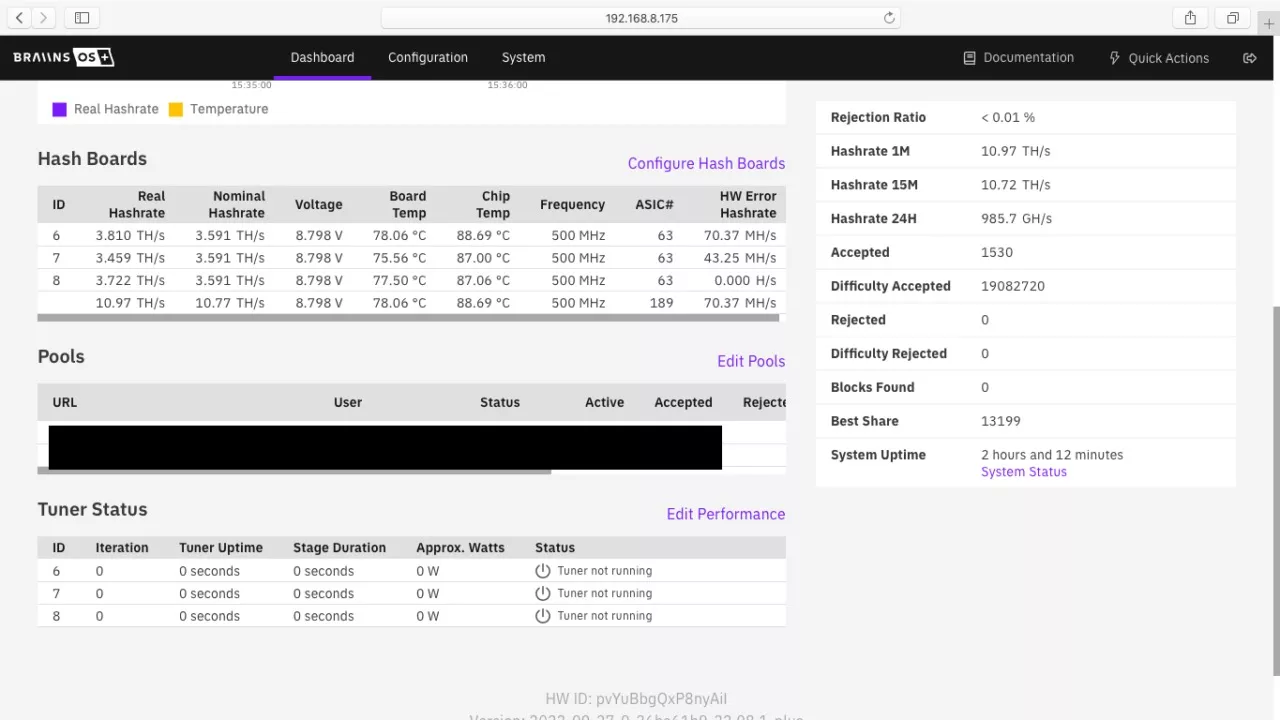

- Further down, you will find a detailed view of each hashboard. The average temperature of the board and the chips it contains, as well as the voltage and frequency.
- Details on the active mining pools in Pools.
- The status of autotuning in Tuner Status.
- On the right, details on the data transmitted to the pool.
