In the previous chapters, you followed the path of a Bitcoin transaction: created and signed by a wallet, relayed by nodes, stored in mempools, then confirmed when a miner includes it in a block accepted by the network. But we haven't yet seen how a miner can add his block to the blockchain. What's the process behind mining?

Understanding the mining process is pretty straightforward. It boils down to 3 concepts that go hand in hand: a hash function, a target value and a variable that the miner can modify. Let's take a look at how it all works.

The hash function

A hash function is a tool that takes a message as input and produces an output of fixed size, called "fingerprint" or "hash".

The hash function is interesting in computer systems because it has certain properties:

If you change a single bit of the input, the resulting output hash changes completely and unpredictably;

It is impossible to go from the output to the input: the function is irreversible;

It's impossible to find two different messages that give exactly the same hash.

The hash function used in Bitcoin for mining is SHA256, applied twice in succession. This is known as double SHA256, or SHA256d. It is this double hashing that produces the block's fingerprint.

hash = SHA256(SHA256(message))

In our case, the message corresponds in fact to the block header, which you saw in the previous chapter. As a reminder, the header is a small structure that summarizes everything in the block.

Proof of work: finding a hash smaller than the target

Proof-of-Work is often described as solving a complex problem. In reality, it's not so much a problem as a trial-and-error search: the miner must find a version of the header whose hash (after passing through the SHA256d hash function) respects a simple condition: it must be smaller than a certain target.

This condition is formulated as follows:

the block header’s hash is computed using a hash function;
we interpret this hash as a number;
for the block to be valid, this number must be less than or equal to a value called "difficulty target".

In other words, a block is valid if:

SHA256d(block_header) <= target

The target is a 256-bit number. As the hash produced by SHA256d is also 256 bits, they can be compared as two numbers. The lower the target, the more difficult the condition, as there are fewer possible results below this threshold. Conversely, the higher the target, the easier the condition is to satisfy, and the easier it becomes to mine a block. We'll be taking a closer look at how this target is determined in later chapters.

In this system, the hash function is interesting. Remember that it's easy to calculate the output from the input, but impossible to find an input by knowing only the function's output. In mining, miners are not asked to find a precise hash, but rather to find a hash below a target value. The only way to achieve this is to make a very large number of attempts, until a particular header of their candidate block, when hashed, produces a hash smaller than this target.

Once the target is sufficiently low, this process becomes costly. The miner calculates the hash of its candidate block's header, checks the result and, if the condition is not met, modifies the header and repeats the calculation. This loop is repeated until a valid header is found. When the hash of the header finally satisfies the condition, the proof of work is established, the block is considered valid and can be broadcast on the Bitcoin network for nodes to add to their blockchain. The winning miner then receives the associated reward (we'll detail its composition later), while all the miners immediately set off in search of a new, valid header for the next block.

The fundamental advantage of this mechanism lies in its asymmetry. Producing a proof of work is costly for miners, as it requires a large number of hash calculations. On the other hand, for verifiers, i.e. network nodes, verification is extremely simple: all they have to do is hash the block header supplied by the miner and check that the resulting hash is indeed lower than the target. Finding a proof therefore requires a lot of work and resources, whereas verifying its validity is quick and inexpensive. It is precisely this property that defines an efficient proof-of-work system.

The nonce

A practical question remains: if the candidate block's header constructed by the miner doesn't give a valid hash, how can the miner try again? He needs to modify something in the header to obtain a different hash. This is precisely the role of the nonce.

Remember the first property of a hash function: changing a single bit of the input is enough to produce a totally different and unpredictable output hash. Each hash calculation is therefore akin to a random draw.

To try his luck again, the miner doesn't need to modify the entire header of his candidate block: he just needs to change a tiny part of it, because even a single different bit will result in a completely new hash, potentially valid if it's smaller than the target.

This is precisely why the block header contains a nonce. The nonce is a 32-bit value, used once and then replaced. In practical terms, for the same candidate block, a miner can test some 4.29 billion possible values (from 0 to 2^32 - 1). Each variation of the nonce modifies the block header and, consequently, completely changes the hash produced after applying the SHA256d hash function.

The mining process is very simple:

the miner builds a candidate block (transactions + header);
then calculates the hash of the SHA256d(header);
if the result is greater than the target, it changes the nonce;
starts again;
etc.

In fact, the nonce is not the only field that can be modified. Any modification within the transactions of a block results in a change to the root of the Merkle tree, and therefore a modification to the header of that block. With modern computing power, going through the 4.29 billion possible values of the nonce can be done relatively quickly. That's why there's another field, generally referred to as "extra-nonce", which further multiplies the possibilities of header variation. We'll come back to this mechanism in more detail in a later chapter.

What's the point of proof of work?

We call it "proof" because the result is immediately verifiable: once a block has been produced, any node can check, in a fraction of a second, that the cryptographic hash of its header is indeed below the required target. We call it "work" because achieving this hash requires a multitude of attempts, and therefore a real cost in terms of computation and energy.

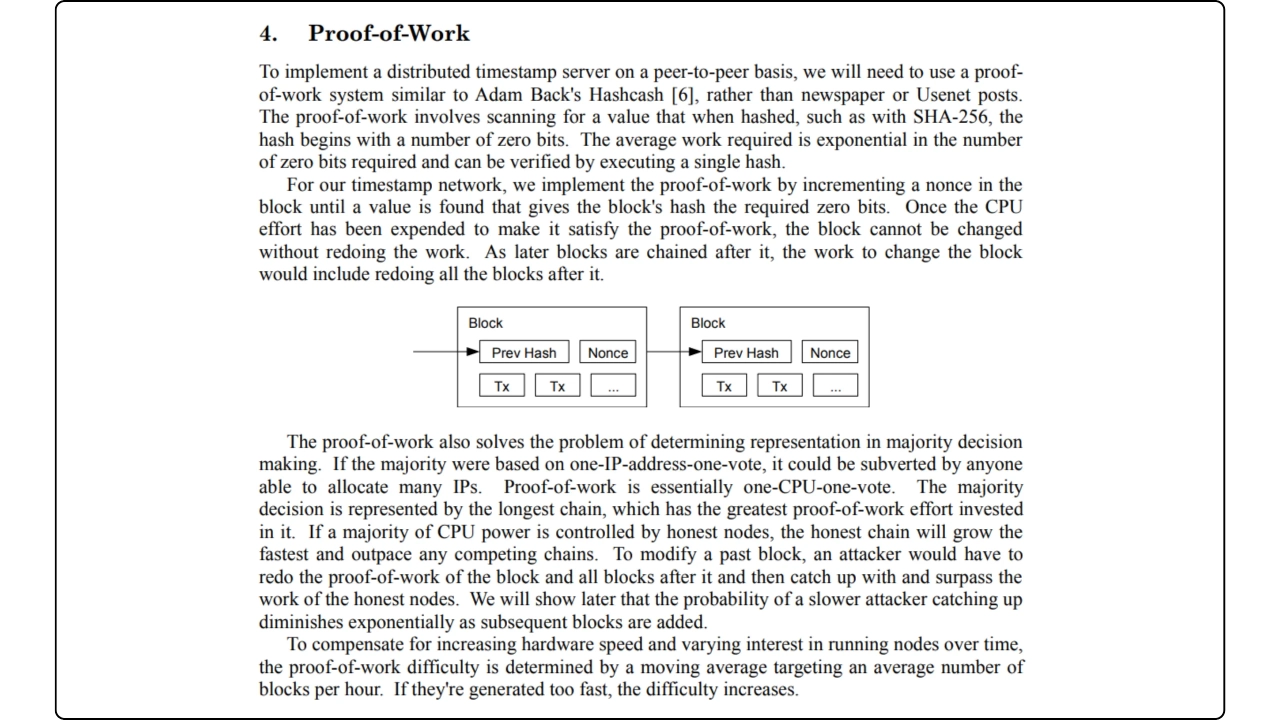

In the Bitcoin White Paper, Satoshi Nakamoto puts forward two advantages in using a proof-of-work system in Bitcoin:

Sealing the economic history:

Once the computational load has been spent, the block is locked: modifying it would require redoing that block’s proof of work. And as the blocks are chained together, altering an old block would also mean recalculating all the subsequent blocks, and then catching up to and surpassing the ongoing work of the honest chain.

In other words, the proof-of-work serves as the backbone of the time-stamping system, making it increasingly costly to falsify the past as blocks accumulate. When a new block is mined, the security provided by the proof of work is applied simultaneously and uniformly to all existing UTXOs. With each block added, each UTXO thus accumulates an additional amount of security from the Proof-of-Work.

Define majority rule (consensus) and neutralize Sybil:

Proof-of-Work also allows Bitcoin to reach consensus without relying on the "one ID = one vote" voting rule, which could be easily fudged by the massive creation of identities (IPs, nodes, keys...).

In Bitcoin, the "majority" is not the greatest number of participants, but the chain that accumulates the most work. As Satoshi puts it, this is a "one CPU = one vote" principle, i.e. a vote weighted by the actual computing power spent to produce valid blocks. So deploying thousands of nodes brings no advantage in itself over Bitcoin. Without additional computing power, no more proofs of work are accumulated, and the Sybil attack becomes useless, while the decision rule remains objective and requires no identification of participants.

Nakamoto, S. (2008). Bitcoin: A Peer-to-Peer Electronic Cash System.

The principles relating to the usefulness and powers of miners are a highly complex subject, which I won't go into in greater detail in this course. However, we will return to this subject in depth in the future MIN 201 training course.

For the moment, you can summarize how mining works like this: miners build a candidate block with the transactions pending in the mempools, then look for a hash of its header (via SHA256d) that is less than or equal to a target. They achieve this by testing nonces through trial and error.

In the next chapter, we'll take a brief historical detour into the proof-of-work principle to understand its background, and then look at how the difficulty target is determined by the system.
