Typically, you would want to guarantee both secrecy and authenticity in communication and, hence, encryption schemes and MAC schemes are typically used together.

An authenticated encryption scheme is a scheme that combines encryption with a MAC in a highly secure manner. Specifically, it has to meet the standards for existential unforgeability as well as a very strong notion of secrecy, namely one that is resistant to chosen-ciphertext attacks. [7]

In order for an encryption scheme to be resistant to chosen-ciphertext attacks, it must meet the standards for non-malleability: that is, any modification of a ciphertext by an attacker should yield either an invalid ciphertext or one that decrypts to a plaintext having no relation to the original one. [8]

As an authenticated encryption scheme ensures that a ciphertext created by an attacker is always invalid (as the tag will not be verified), it meets the standards for resistance to chosen-ciphertext attacks. Interestingly, you can prove that an authenticated encryption scheme can always be created from the combination of an existentially unforgeable MAC and an encryption scheme that meets a less stronger notion of security, known as chosen-plaintext-attack security.

We will not delve into all the details of constructing authenticated encryption schemes. But it is important to know two details of their construction.

First, an authenticated encryption scheme first handles the encryption and then creates a message tag on the ciphertext. It turns out that other approaches—such as combining the ciphertext with a tag on the plaintext, or first creating a tag and then encrypting both the plaintext and the tag—are insecure. In addition, both operations have their own randomly selected private key, otherwise your security is severely compromised.

The aforementioned principle applies more generally: you should always use distinct keys when combining basic cryptographic schemes.

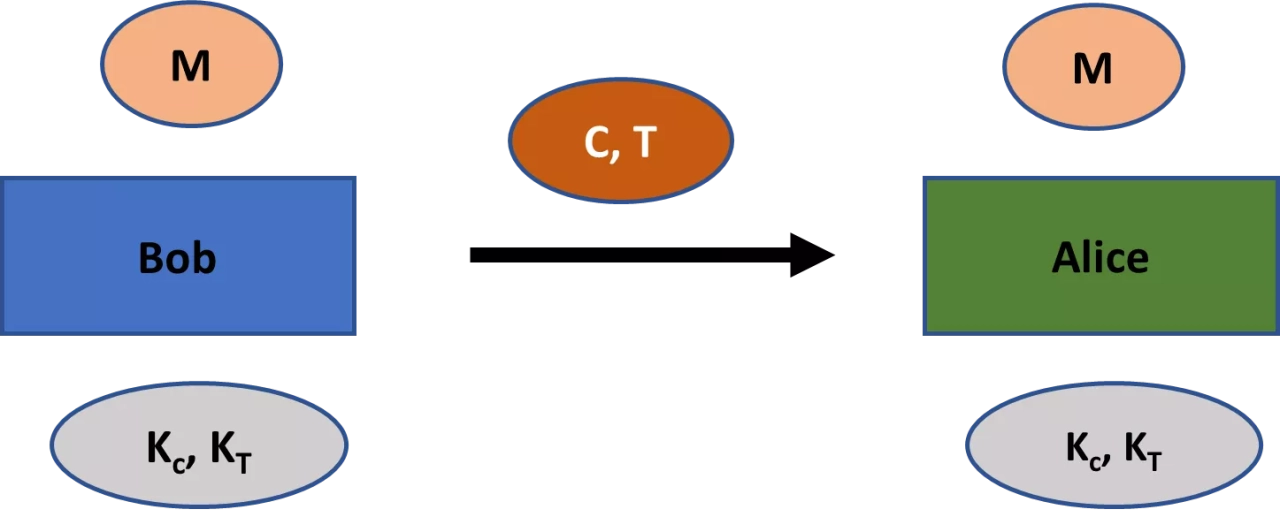

An authenticated encryption scheme is depicted in Figure 10. Bob first creates a ciphertext from the message using a randomly selected key . He then creates a message tag by running the ciphertext and a different randomly selected key through the tag generation algorithm. Both the ciphertext and the message tag are sent to Alice.

Alice now first checks whether the tag is valid given the ciphertext and the key . If valid, she can then decrypt the message using the key . Not only is she assured of a very strong notion of secrecy in their communications, but she also knows the message was created by Bob.

How are MACs created? While MACs can be created via multiple methods, a common and efficient way to create them is via cryptographic hash functions.

We will introduce cryptographic hash functions more thoroughly in Chapter 6. For now, just know that a hash function is an efficiently computable function that takes inputs of arbitrary size and yields fixed-length outputs. For example, the popular hash function SHA-256 (secure hash algorithm 256) always generates a 256-bit output regardless of the size of the input. Some hash functions, such as SHA-256, have useful applications in cryptography.

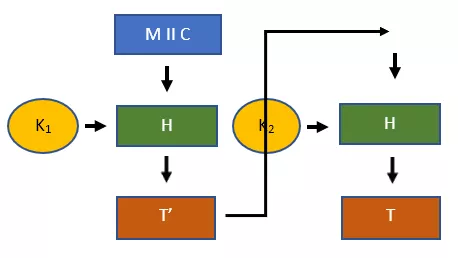

The most common type of tag produced with a cryptographic hash function is the hash-based message authentication code (HMAC). The process is depicted in Figure 11. A party produces two distinct keys from a private key , the inner key and the outer key . The plaintext or ciphertext is then hashed together with the inner key. The result is then hashed with the outer key to produce the message tag .

There is a palette of hash functions that can be used to create an HMAC. The most commonly employed hash function is SHA-256.

[7] The specific results discussed in this section are from Katz and Lindell, pp. 131–47.

[8] Technically, the definition of chosen cipher text attacks is different than the notion of non-malleability. But you can show that those two notions of security are equivalent.
