Symmetric encryption schemes are standardly subdivided into two types: stream ciphers and block ciphers. This distinction is somewhat troublesome, however, as people use these terms in an inconsistent manner. In the next few sections, I will set out the distinction in the way I think is best. You should be aware, however, that many people will use these terms somewhat differently than I set out.

Let’s first turn to stream ciphers. A stream cipher is a symmetric encryption scheme where encryption consists of two steps.

First, a string the length of the plaintext is produced via a private key. This string is called the keystream.

Next, the keystream is mathematically combined with the plaintext to produce a ciphertext. This combination is typically an XOR operation. For decryption, you can just reverse the operation. (Note that , in the case and are bit-strings. So the order of an XOR operation in a stream cipher does not matter for the result. This property is known as commutativity.)

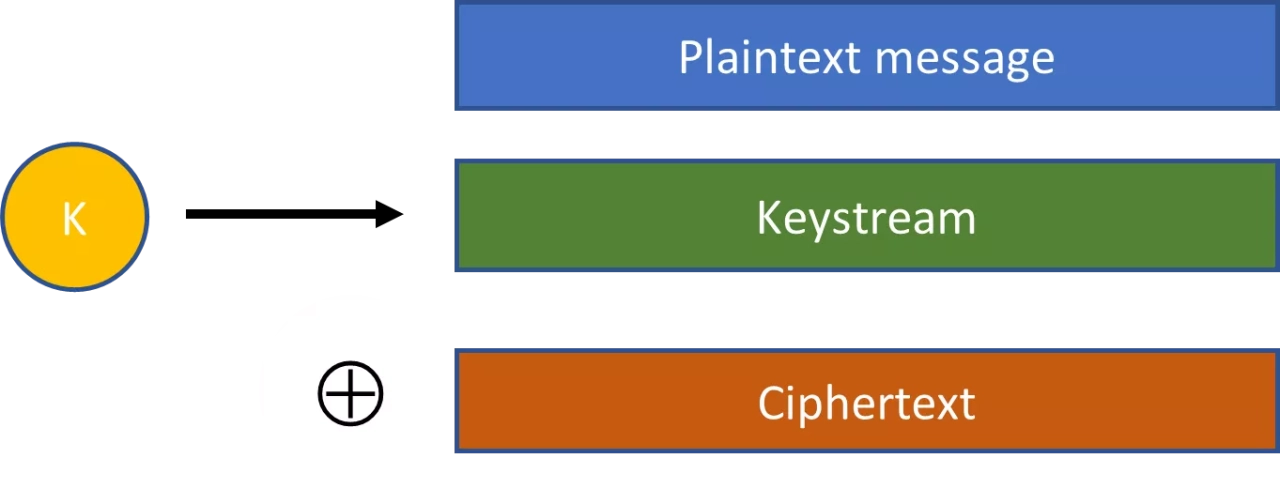

A typical XOR stream cipher is depicted in Figure 3. You first take a private key and use it to generate a keystream. The keystream is, then, combined with the plaintext via an XOR operation to produce the ciphertext. Any agent that receives the ciphertext can easily decrypt it if they have the key . All she needs to do is create a keystream as long as the ciphertext according to the specified procedure of the scheme and XOR it with the ciphertext.

Be reminded that an encryption scheme is typically a template for encryption with the same core algorithm, rather than an exact specification. By extension, a stream cipher is typically a template for encryption in which you can use keys of different lengths. Though the key length can impact some minor details of the scheme, it will not impact its essential form.

The shift cipher is an example of a very simple and insecure stream cipher. Using a single letter (the private key), you can produce a string of letters the length of the message (the keystream). This keystream is, then, combined with the plaintext via a modulo operation to produce a ciphertext. (This modulo operation can be simplified to an XOR operation when representing the letters in bits).

Another famous example of a stream cipher is the Vigenere cipher, after Blaise de Vigenere who fully developed it at the end of the 16th century (though others had done a lot of preceding work). It is an example of a polyalphabetic substitution cipher: an encryption scheme where the ciphertext alphabet for a plaintext symbol changes depending on its position in the text. By contrast to a monoalphabetic substitution cipher, ciphertext symbols can be associated with more than one plaintext symbol.

As encryption gained popularity in Renaissance Europe, so did cryptanalysis—that is, the breaking of ciphertexts—particularly, using frequency analysis. The latter employs statistical regularities in our language to break ciphertexts, and was discovered by Arabic scholars already in the ninth centry. It is a technique that works particularly well with longer texts. And even the most sophisticated monoalphabetic substition ciphers were no longer sufficient against frequency analysis by the 1700s in Europe, particularly in military and security settings. As the Vigenere cipher offered a significant advancement in security, it became popular in this period and was widespread by the late 1700s.

Informally speaking, the encryption scheme works as follows:

To illustrate, suppose that your private key is "GOLD" and you want to encrypt the message "CRYPTOGRAPHY". In that case, you would proceed as follows according to the Vigenère cipher:

Thus, the ciphertext = "IFJSZCRUGDSB".

Another famous example of a stream cipher is the one-time pad. With the one-time pad, you simply create a string of random bits as long as the plaintext message and produce the ciphertext via the XOR operation. Hence, the private key and the keystream are equivalent with a one-time pad.

While the Shift cipher and Vigenere ciphers are very insecure in the modern age, the one-time pad is very secure if used correctly. Probably the most famous application of the one-time pad was, at least until the 1980s, for the Washington-Moscow hotline. [4]

The hotline is a direct communications link between Washington and Moscow for urgent matters that was installed after the Cuban Missile Crisis. The technology for the has transformed over the years. Currently, it includes a direct fiber optic cable as well as two satellite links (for redundancy), which enable e-mail and text messaging. The link ends in various places in the US. The Pentagon, the White House, and Raven Rock Mountain are known endpoints. Contrary to popular opinion, the hotline has never involved telephones.

In essence, the one-time pad scheme worked as follows. Both Washington and Moscow would have two sets of random numbers. One set of random numbers, created by the Russians, pertained to encryption and decryption of any messages in the Russian language. One set of random numbers, created by the Americans, pertained to encryption and decryption of any messages in the English language. From time to time, more random numbers would be delived to the other side by trusted couriers.

Washington and Moscow were, then, able to communicate secretly by using these random numbers for creating one-time pads. Each time you needed to communicate, you would use the next portion of random numbers for your message.

While highly secure, the one-time pad faces significant practical limitations: the key needs to be as long as the message and no part of a one-time pad can be re-used. This means that you need to keep track of where you are in the one-time pad, store a massive number of bits, and exchange random bits with your counterparties from time to time. As a consequence, the one-time pad is not frequently used in practice.

Instead, the predominant stream ciphers used in practice are pseudorandom stream ciphers. Salsa20 and a closely related variant called ChaCha are examples of commonly used pseudorandom stream ciphers.

With these pseudorandom stream ciphers, you first randomly select a key K that is shorter than the length of the plaintext. Such a random key K is usually created by our computer on the basis of unpredictable data which it collects over time, such as the time between network messages, mouse movements, and so on.

This random key is then inserted into an expansion algorithm which creates a pseudorandom key stream as long as the message. You can specify precisely how long the keystream needs to be (e.g., 500 bits, 1000 bits, 1200 bits, 29,117 bits, and so on).

A pseudorandom keystream appears as if it was chosen completely randomly from the set of all strings with the same length. Hence, encryption with a pseudorandom keystream appears as if it had been done with a one-time pad. But that is, of course, not the case.

As our private key is shorter than the keystream and our expansionary algorithm needs to be deterministic in order for the encryption/decryption process to work, not every keystream of that particular length could have resulted as an output from our expansionary operation.

Suppose, for instance, that our private key has a length of 128 bits and that we can insert it into an expansionary algorithm to create a much longer keystream, say of 2,500 bits. As our expansionary algorithm needs to be deterministic, our algorithm can at most select strings with a length of 2,500 bits. So such a keystream could never be selected entirely randomly from all the strings of the same length.

Our definition of a stream cipher has two aspects: (1) a keystream as long as the plaintext is generated with the aid of a private key; and (2) this keystream is combined with the plaintext, typically via an XOR operation, to produce the ciphertext.

Sometimes people define condition (1) more strictly, by asserting that the keystream must specifically be pseudorandom. This means that neither the shift cipher, nor the one-time pad would be considered stream ciphers.

In my view, defining condition (1) more broadly provides an easier way to organize encryption schemes. In addition, it means that we do not have to stop calling a particular encryption scheme a stream cipher just because we learn that it does not actually rely on pseudorandom keystreams.

[4] Crypto Museum, "Washington-Moscow hotline," 2013, available at https://www.cryptomuseum.com/crypto/hotline/index.htm.
